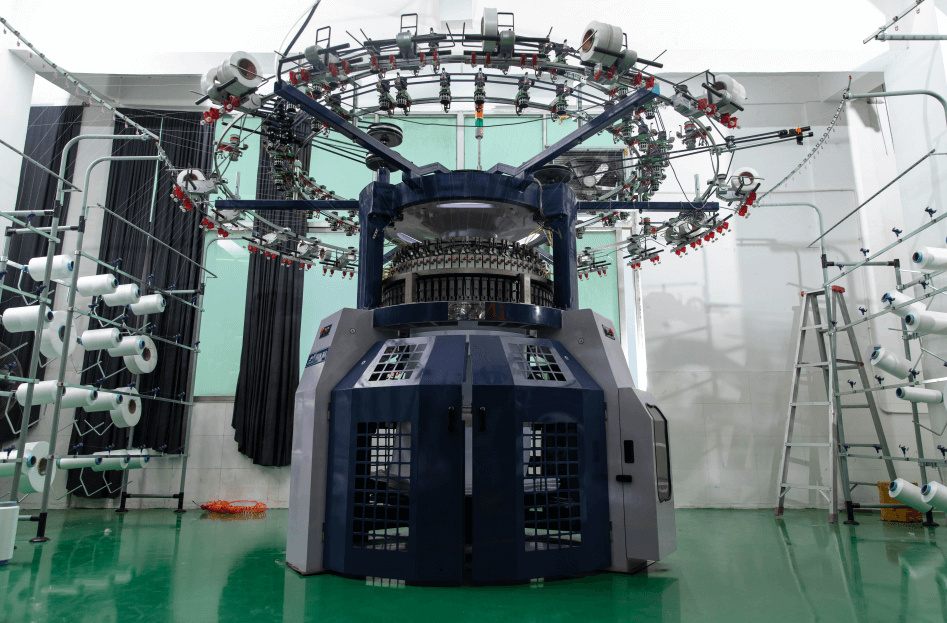

Double Jersey Jacquard (utopian) Circular Knitting Machine

Area of application

  • Sport- and leisurewear
  • Technical textiles
  • Home Textiles

Stitch structure

  • Elastane plating
  • Elektronic-Jacquard
  • Eyelet stitch pattern

Knitting technique

  • Elektronic-Jacquard

Diameter30”-38“
Gauge12G-24G
Feeder54F-84F
Speed12-18r/min
Power5.5HP
EquipmentGroz-beckert NEEDLES; Tatung Motor; Plz mail me for further info
ColorBlue/Grey/According to your requirement
PackingWooden Cartoon
Gross Weight2.8t
Net Weight2.5t
Q’ty/20GP/40GP3sets/20GP,6sets/40GP
Lead time45days after getting deposit
Loading portXiamen Port
Payment termsT/T,L/C at sight
MOQ1set
NoDescriptionSupplierBrandQuantity
1Insert flake type cylinde&dlar(Germany metal)HanmaChina1 unit
2NeedlesGroz-beckertGermany1 Set
3Electric Positive storage yarn feedersLGLItaly1 Unit
4Oiling lubricatorHongshengChina1 Set
5Yarn CreelHanmaChina1 Set

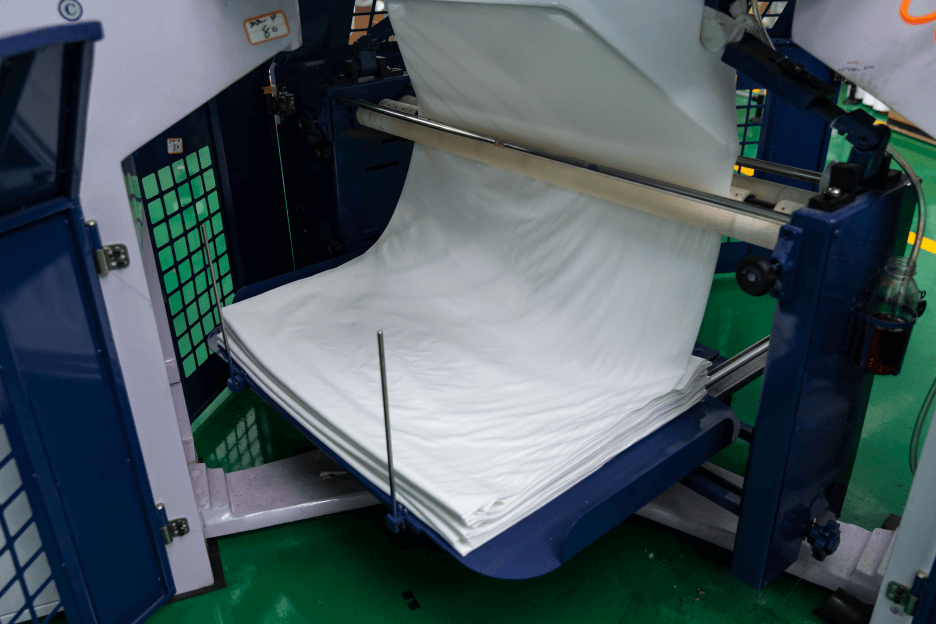

6One way Take-up device.YongtaiChina1 Set
7InvertorSunyueChina1 Set

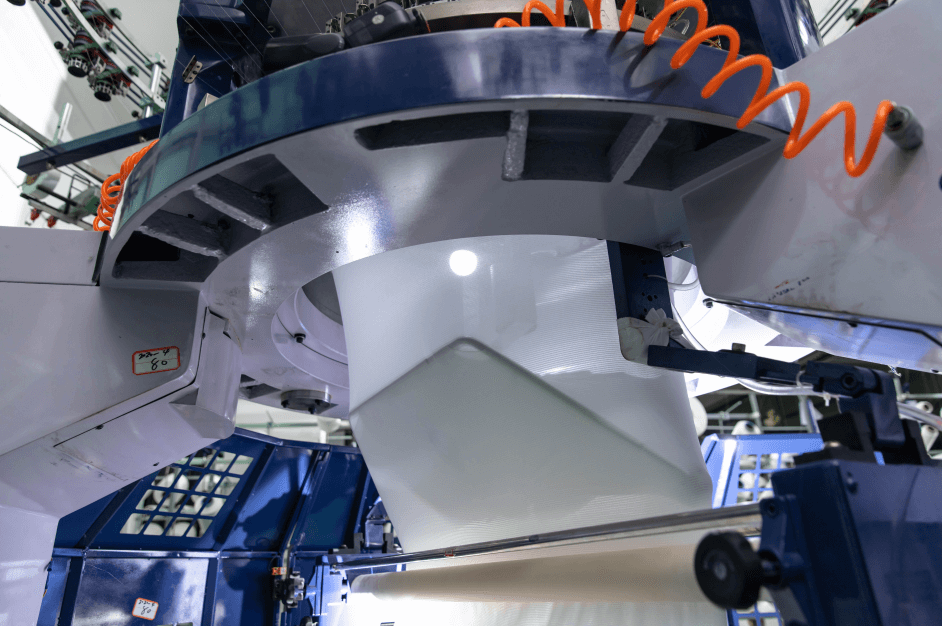

8Fabric Spreader equipmentHanmaChina1 Set
9Sinker CamsJapan1 Set
10Knit camsJapan

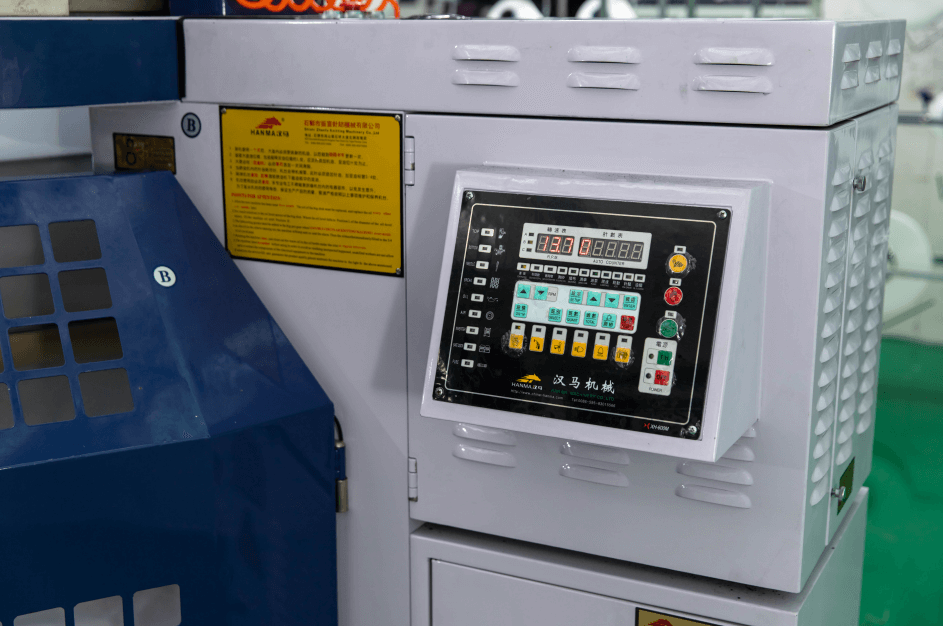

11Digital indicator control panelHanmaChina1 set
12Computer systemChuangdaChina1unit
13Needle selector systemChuangdaChina1 unit
14Automatic dust fans with blower equipment.San songChina1 set
15Radar type round 360’ clear dust equipmentSan songChina1 set
16Spare tools  1 set
17Operation manual for invertor & controller panel  1 set
18  Extra Spare parts : (a) 100pcs needles (b)100pcs sinkers
(c)Feeders 2pcs   (d)Air blower gun 1 set  (e)Fuse 4pcs
(f) Yarn carrier 1pcs  (g)Needle oil 1 liter(h) extra needle selector 1 pc
Condition: NewProduct Type:fabricType:CircularProduction Capacity:250-750kg
Place of Origin: Fujian China
(Mainland)
Brand Name:HANMA
(circular knitting machine)
Model Number:HM-DF4
(circular knitting machine)
Power(W):5.5kw
(circular knitting machine)
Knitting Style: knittedKnitting Method: DoubleComputerized: YesWeight:2.5TON
Dimension(L*W*H):2.35*2.28*2.28MAfter-sales Service Provided:Engineers
available to service machinery overseas
speed:0-30RPM
Certificate: CE
machine type: Double jacquardturn way: anticlockwise
fabric function:sports garment
