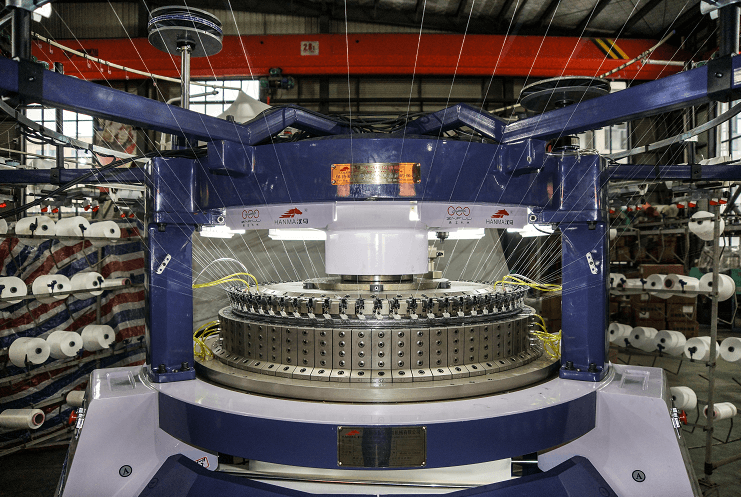

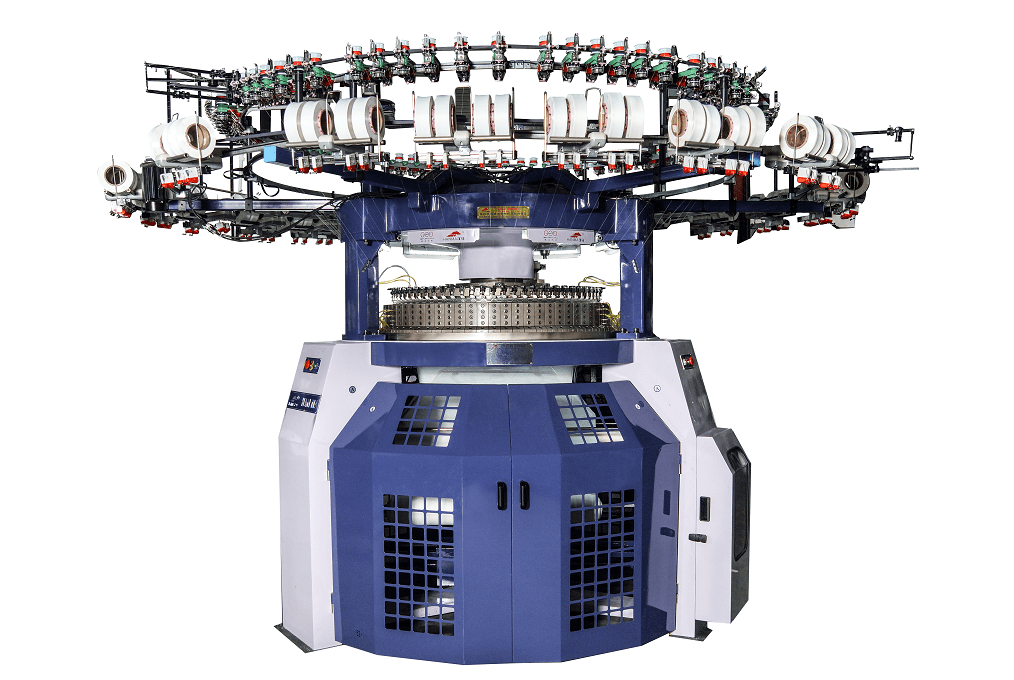

Double Jersey Rib Interlock Circular Knitting Machine install with two tracks CAMs on the dial plate and four tracks CAMs in the cylinder, through adjusting
the position of CAMs, the machine can knit various fabrics such as twill, interlining fabric, air layer fabrics, little jacquard interlayer gasket, bubble-bubble, crape, knitting cloth, pique fabric, etc. If the double jersey machine installs lycra feeders and attachments, it can also knit stretch double jersey fabric. All types of fabrics produced by the machine are widely used in producing underwear, coat fabrics, varied sportswear, and fashion fabrics.

•The machine is suitable for long and short fabric, rib fabric, and jacquard fabric, and yarn socket can be independent with spandex device to weave elastic double fabric 2+4 distance

•The machine can weave complex fabric with changed texture and lower material high-class clothing.

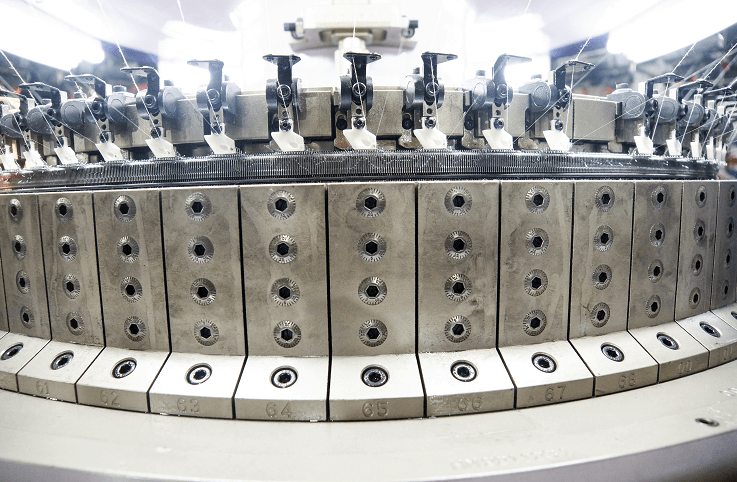

The cams on the lower and upper dials of this machine feature a closed-track design with cams of knit, tuck, and miss. The yarn feeder can be adjusted independently allowing knitting of elastic double jersey fiber by installing an additional Lycra attachment. Also comes equipped with varying types of cylinder, easy and quick to transfer, enabling this machine to meet the never-ending demands of the knitting market.

Weight: 2800kg

Condition: new

Knitting type: circular knitting

Application: 24”-68”


System support:72F-272F

Needle: China/ Germany

Speed: 16-24r/m

Warranty: 1 year

Lead time:30 days

Stitch Density: High speed

Control system: Hanma Drive type: Sea flight

Related Product

Related Article

circular knitting machine guide

Introduction of circular knitting machine Until now, circular knitting machines have been designed and manufactured for the mass production of knitted fabrics. The special properties of knitted fabrics, especially fine fabrics made by the circular knitting process, makes these types of fabric suitable for application in clothing, industrial textiles, medical and orthopaedic garments, automotive textiles, hosiery, agro and geotextiles, etc. …

Read morecircular knitting machine guide

what is the kind of circular knitting machine

Circular knitting machines are generally divided into two categories: single-sided series and double-sided series. But according to the types of fabrics processed and produced (academically called fabrics. Commonly called grey fabrics in factories), there are the following types:Single side seriesThe single jersey circular knitting machine is a machine with a needle cylinder. Specifically divided into …

Read morewhat is the kind of circular knitting machine

Circular knitting machine basic operation knowledge

Computer Vision-Aided Fabric Inspection System for On-Circular Knitting Machine This paper describes a computer vision-based fabric inspection system implemented on a circular knitting machine to inspect the fabric under construction. The study consisted of two parts. In the first part, detection of defects in knitted fabric was performed and the performance of three different spectral …

Read moreCircular knitting machine basic operation knowledge

circular knitting machine price

What is circular knitting machine? Circular knitting machine, scientific name knitting circular weft knitting machine (or called circular knitting machine). Due to a large number of the loop forming systems of the circular knitting machine (called the number of yarn feeding paths or loop forming paths, referred to as the number of loops in the …

Read morecircular knitting machine price

Contract us

Condition: NewProduct Type:fabricType:CircularProduction Capacity:250-750kg
Place of Origin: Fujian China
Brand Name:HANMA
(circular knitting machine)
Model Number:HM-DF4
(circular knitting machine)
(circular knitting machine)
Knitting Style: knittedKnitting Method: DoubleComputerized: NoWeight:2.5TON
Dimension(L*W*H):2.35*2.28*2.28MAfter-sales Service Provided:Engineers
available to service machinery overseas
Certificate: CE
machine type: double jerseyturn way: anticlockwise
fabric function:sports garment

1Insert flake type cylinde&dlar(Germany metal)HanmaChina1 unit
2NeedlesGroz-beckertGermany1 Set
3Positive storage yarn feedersHanmaChina1 Unit

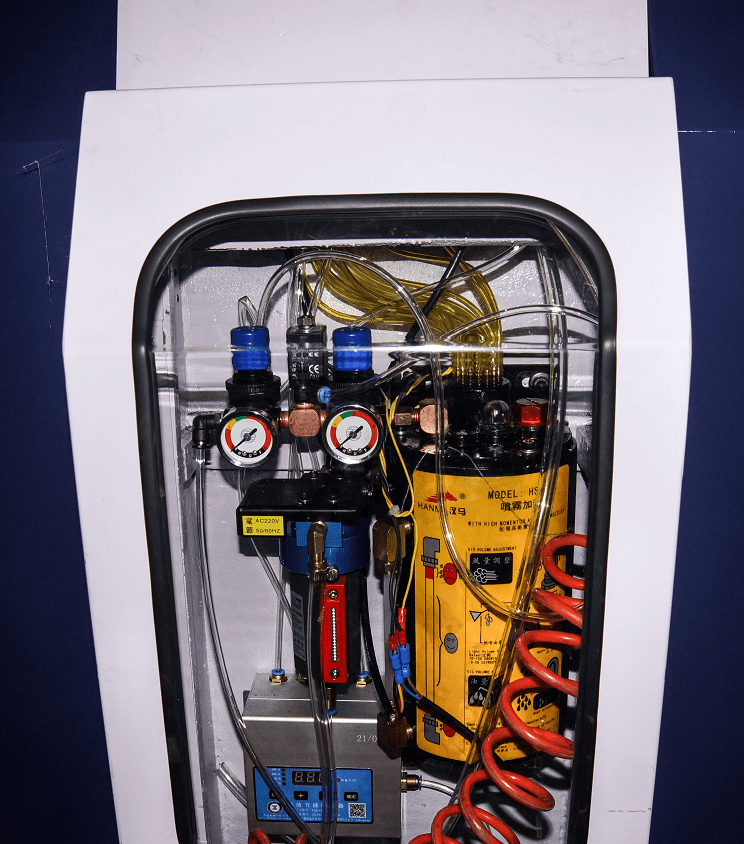

4Oiling lubricatorHongshengChina1 Set
5Yarn CreelHanmaChina1 Set

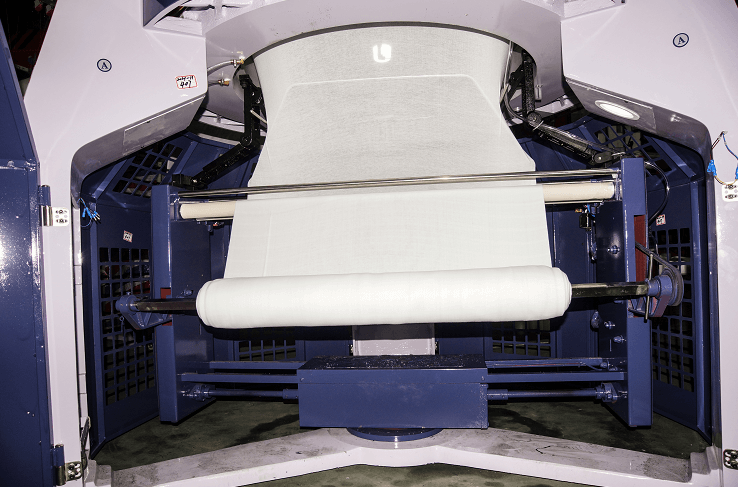

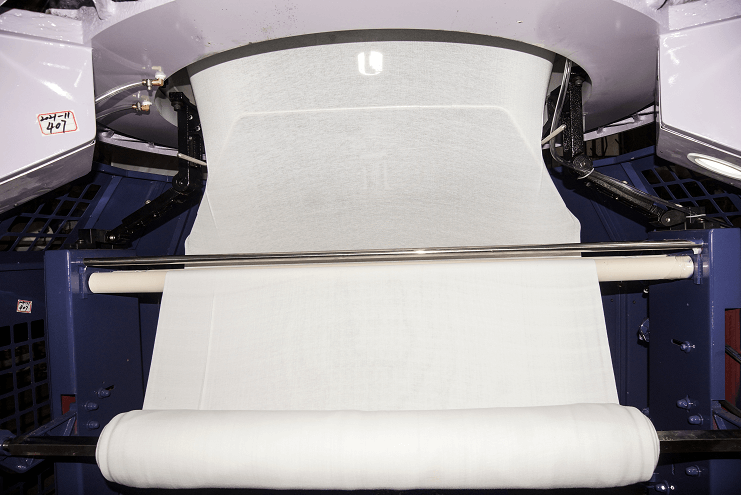

6One way take-down deviceHanmaChina1 Set
7InvertorSunyueChina1 Set
8Fabric Spreader equipmentHanmaChina1 Set
9CamsJapan1 Set

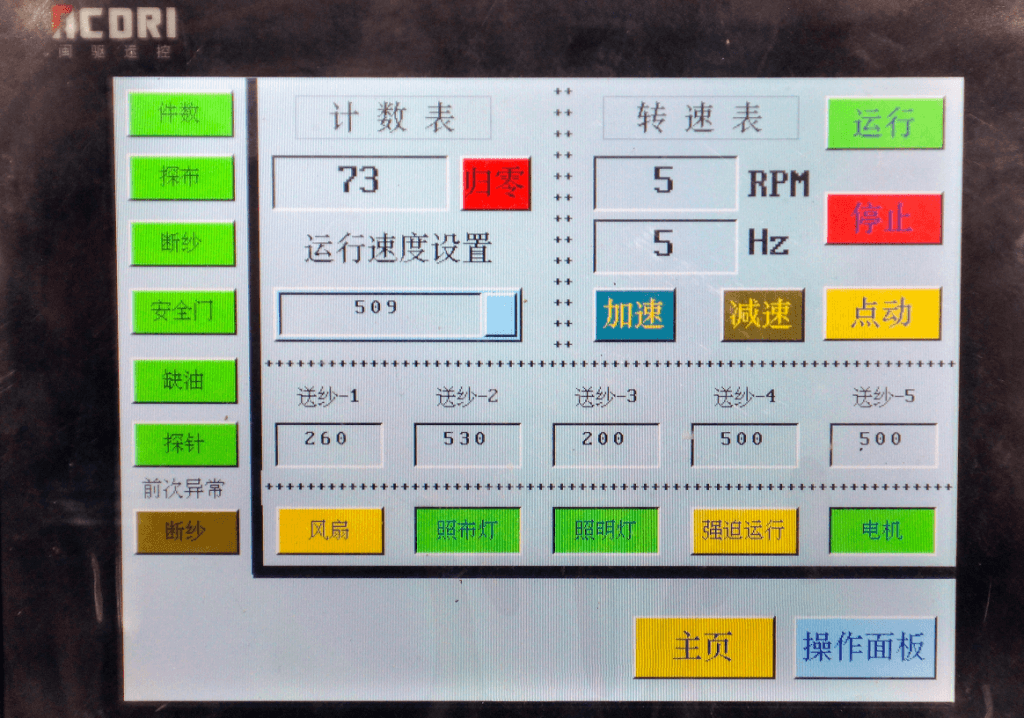

10Digital indicator control panelHanmaChina1 set
11Automatic dust fans with blower equipment.San songChina1 set
12Radar type round 360’ clear dust equipmentSan songChina1 set
13Spare tools
14Operation manual for invertor & controller panel
15Extra Spare parts : (a) 100pcs needles (b)Feeders 1pcs
(c)Air blower gun 1 set  (d)Fuse 4pcs    (e) Yarn carrier 1pcs
(f)Needle oil 1 liter


1.Most of the structures and main parts are produced by an advanced processing center, which ensures precision and accuracy. Interlock fabric needs very high precision, Hanma machine can help you to reach the beautiful surface, to catch the high-end customer.

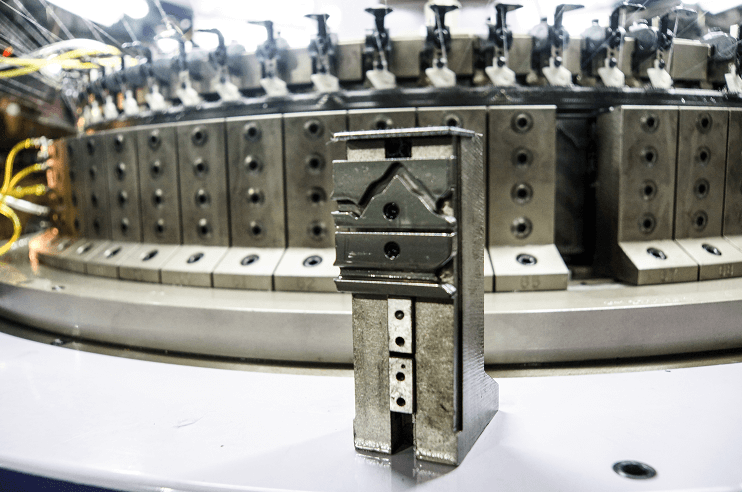

2.All cams are made of special alloy steel and processed by CNC under CAD / CAM and heat treat. The process guarantees the great hardness and wear-proof.

3.Use GROZ-BECKERT needles and KERN-LIEBER’S sinkers which ensure the fabric quality and long life of the machine.
4.The fabric knitted can be widely used for many fields, such as diving fabric, yoga fabric, underwear fabric, sandwich fabric, car seat fabric, and all kinds of double jersey fabric.
