SINGLE JERSEY OPEN WIDTH circular KNITTING MACHINE

The Open-Width Single Knitting Machine is developed on the basis of a single-surface machine and fabric machine, which has the characteristics of the single-surface machine and crease-free for the cloth of the fabric machine
The new generation 0f knitting machine is developed by the company combining with knitting principle, ergonomics, and
aesthetic viewpoint.
The Open-Width Single Knitting Machine uses three-dimensional computer-aided design(CAD)and computer-aided analysis (CAE)for gear static analysis and transmission simulation, to reduce defects of gear design and manufacturing so that the machine runs more smoothly, the performance is more excellent. and weaving cloth is more professional and sophisticated·
Important components use advanced processing center for manufacturing, to improve the precision and accuracy of parts, some precise positioning is used between parts in the heart. Major structural parts use advanced surface treatment craft, which greatly improves the surface quality, hardness, and corrosion preventive level.
In brief. beautiful and novel appearance, high performance. stable running. easy operation. and people-oriented are the main feature of our series

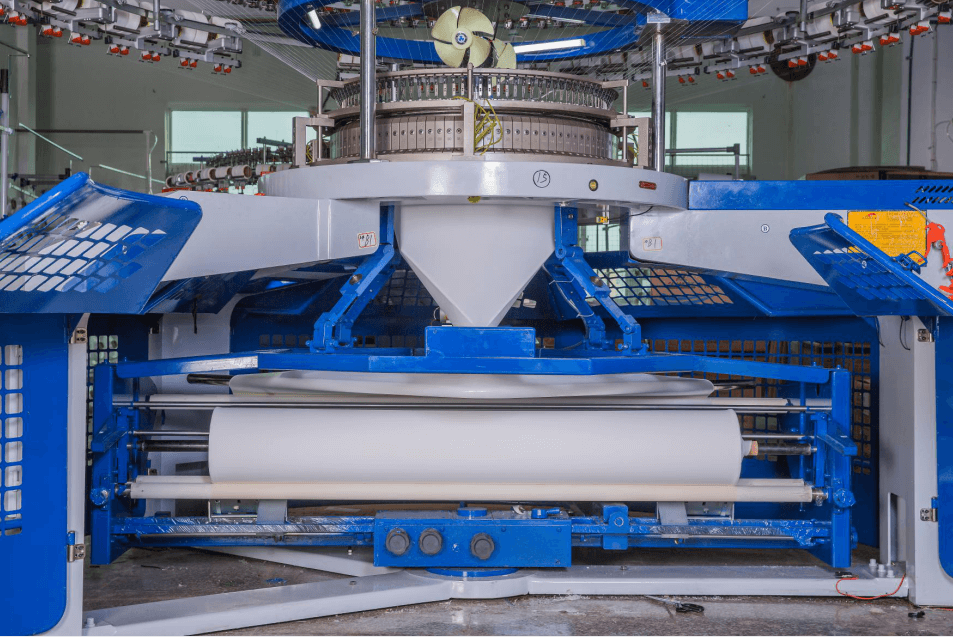

The Open Width Circular knitting machine is fabricated based on the single jersey tubular knitting machine which enables the fabric to completely result in a crease-free, smooth texture. Fabric density, size and thickness can be easily adjusted with this type of configuration and thus can prolong the life of the needles and equipment.

Scale marks are found around its circumference which maintains the distance between fabric ends. This reliably ensures that the machine operates inch by inch and maintains accuracy.

Diameter:12″-38″
 Gauge :16G -44G
 Feeder:42F -114F
 Speed:17-20r/min
 Power:7.5 -11.5KW

Contract us

NoDescriptionSupplierBrandQuantity

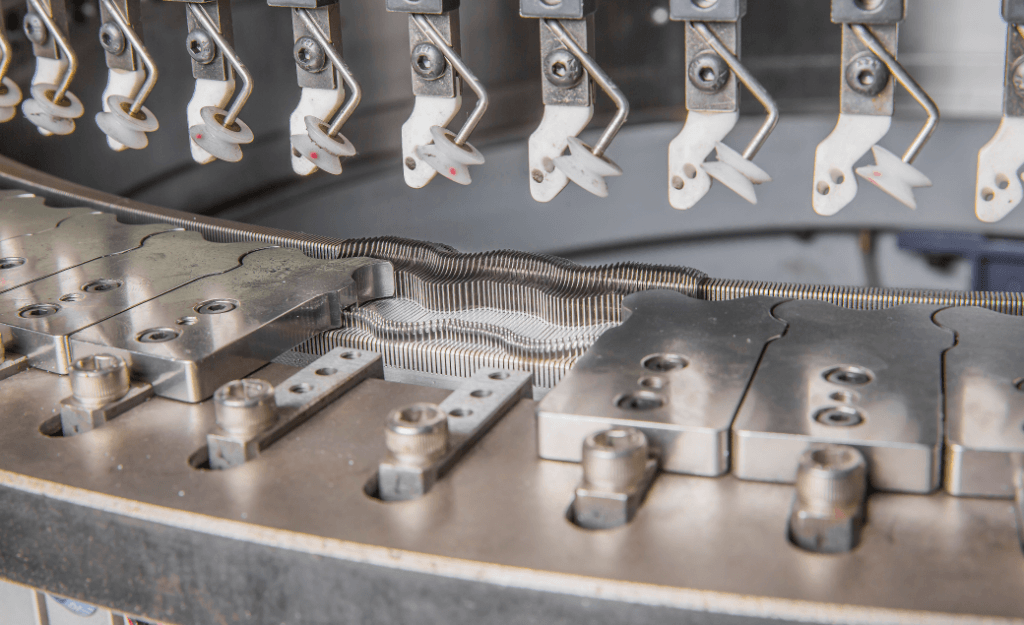

1Insert flake type cylinder &dial(Germany metal)HanmaChina1 unit
2NeedlesGroz-beckertGermany1 set
3SinkersKern liebersGermany1 set
4Positive storage yarn feeders NeoHanmaChina1 unit

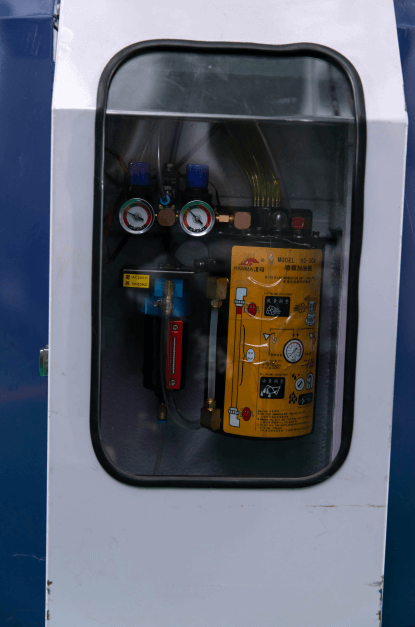

5Oiling lubricatorHanmaChina1 unit
6Yarn creel HanmaChina1 set
7One ways Take-down deviceYong taiTaiwan1 set
8Invertors for motor controllerSunyueTaiwan1 set
9fabric Spreader equipmentHanmaChina1 set
10camHanmaChina1 set

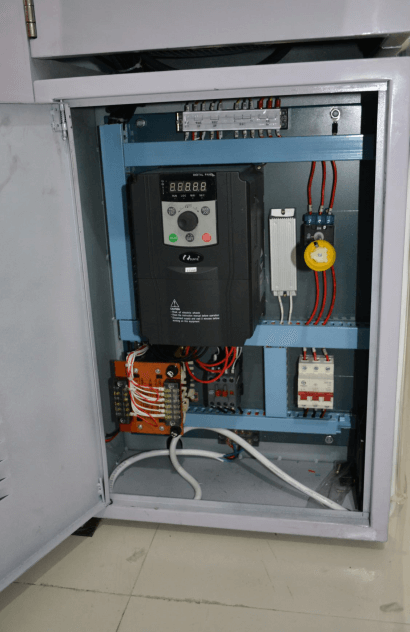

11Control panelHanmaChina1 set
12Automatic dust fans with blower equipment.San songChina1 set
13Radar type round 360”Clear dust equipmentSan songChina1 set
14MotorHanmaTaiwan1 set
15Spare tools  1 set
16Operation manual for invertors & controller panel  1 set
17  Extra Spare parts : (a) 100pcs needles (b)100pcs sinkers
(c)Feeders 1pcs   (d)Air blower gun 1 set  (e)Fuse 4pcs
  (f) Yarn carrier 1pcs  (g)Needle oil 1 liter
Condition: NewProduct Type:fabricType:CircularProduction Capacity:250-750kg
Place of Origin: Fujian China
(Mainland)
Brand Name:HANMA
(circular knitting machine)
Model Number:HM-DF4
(circular knitting machine)
Power(W):5.5kw
(circular knitting machine)
Knitting Style: knittedKnitting Method: SingleComputerized: NoWeight:2.5TON
Dimension(L*W*H):2.35*2.28*2.28MAfter-sales Service Provided:Engineers
available to service machinery overseas
speed:0-30RPM
Certificate: CE
machine type: single jerseyturn way: anticlockwise
fabric function:sports garment

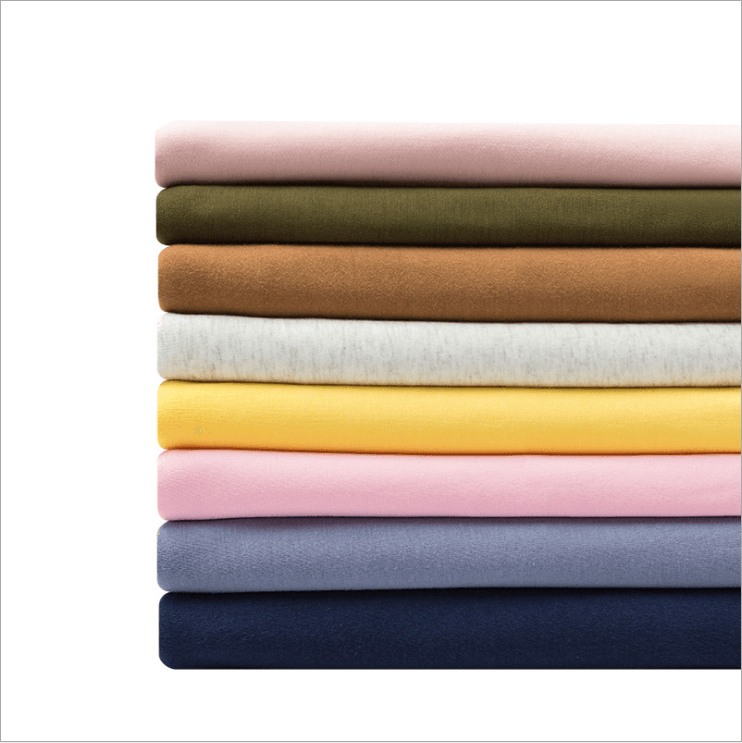

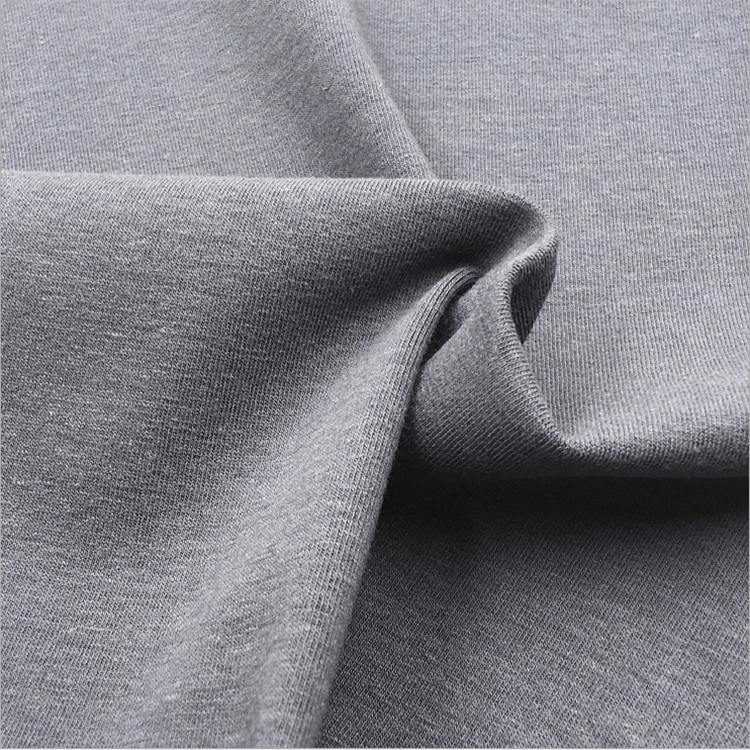

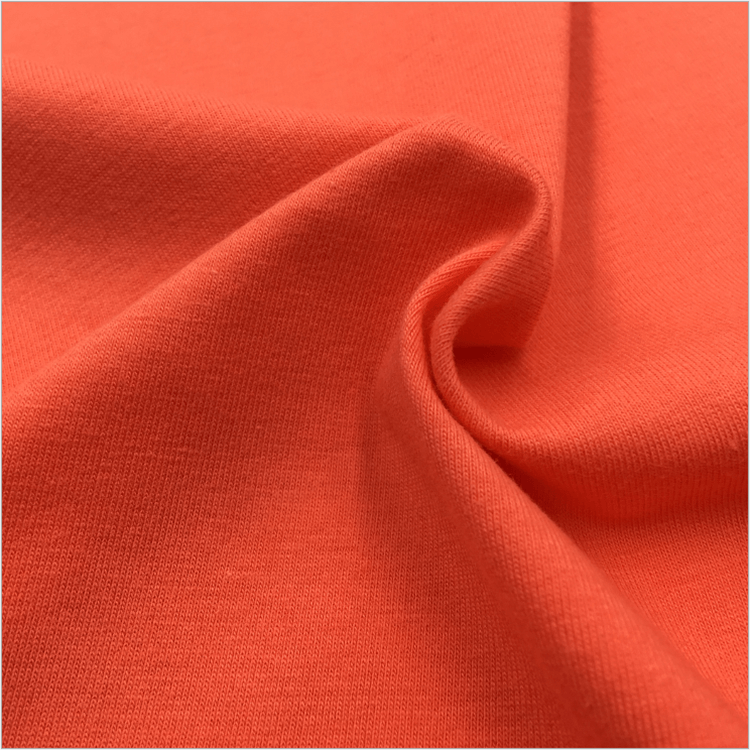

Composition: 95/5Cotton/spandex dyed single jersey fabric

Construction: 40s

Width: 175cm

Weight 150gsm

Color: Optional

Style: good handfeel single jersey

Related RFQ

We are located at Shishi City Fujian Province China, we are export port is Xiamen port

Yes, we have excellent after-sales service, can give quick response , supporting in Chinese and English, video support is available. We have training center in our Factory.

We offer warranty for about one year after customer received our products

Flat knitting machine (computer driven) For an example, the polo shirt collars are made on a flat knitting machine. The flat knitting machine can be used both for the single jersey and rib fabrics but fabrics come in open width. The manual flat knitting machines are widely used for knitting sweater parts.
