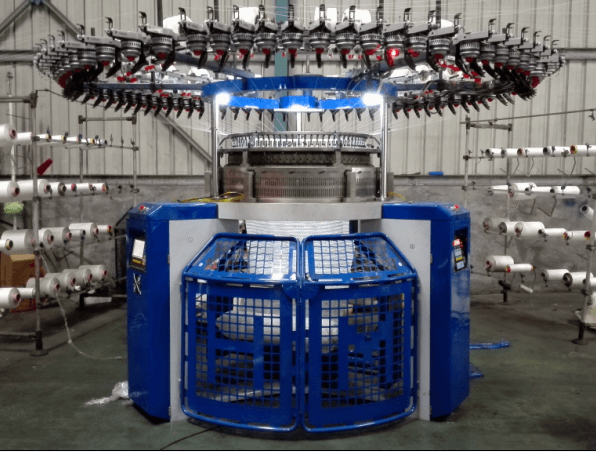

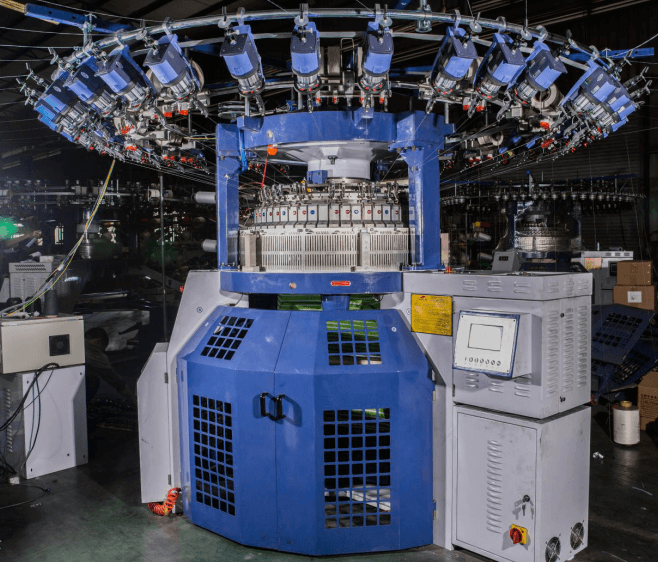

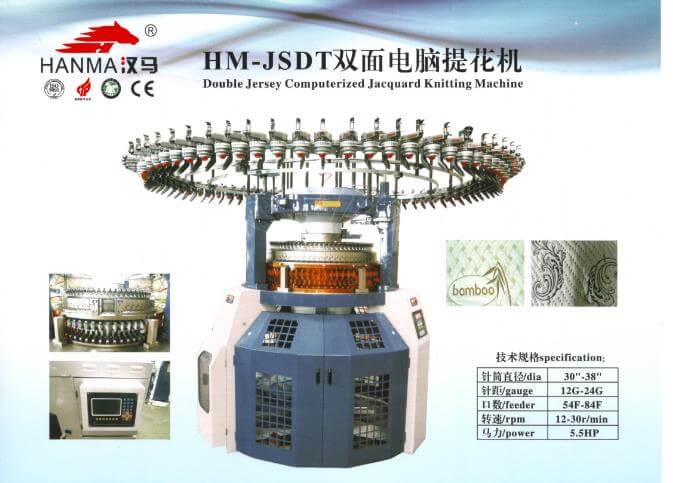

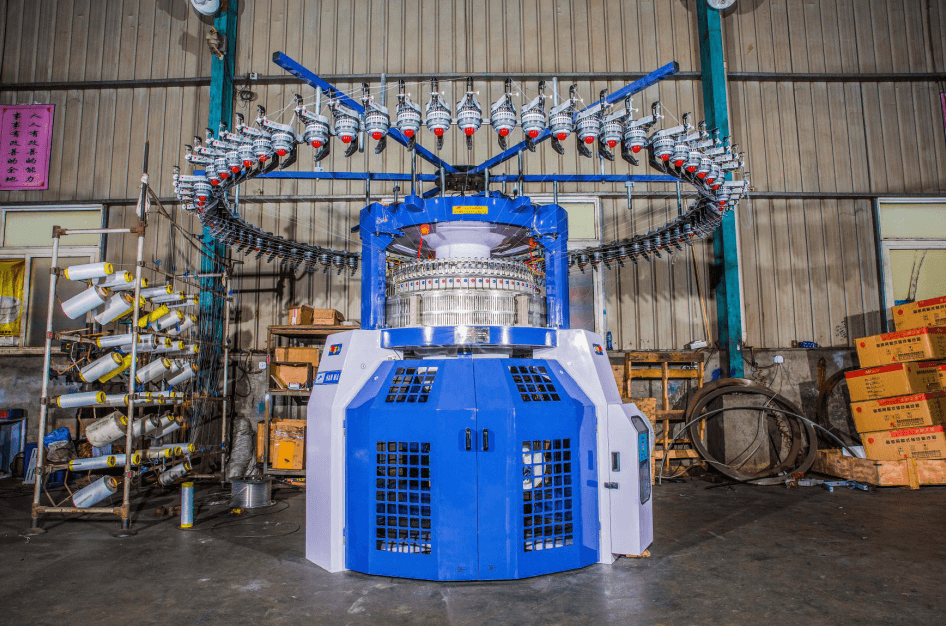

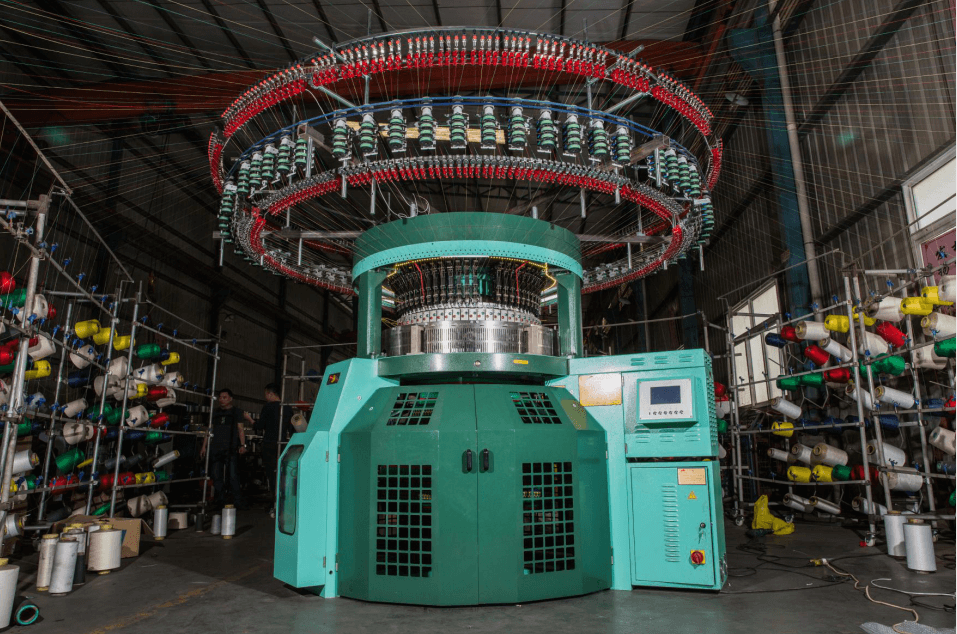

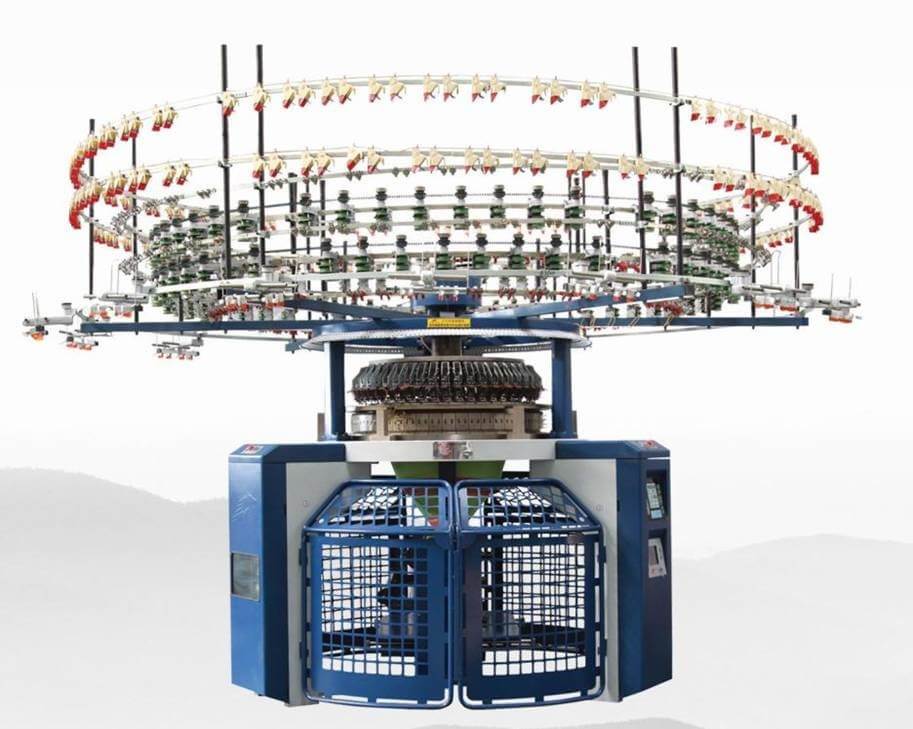

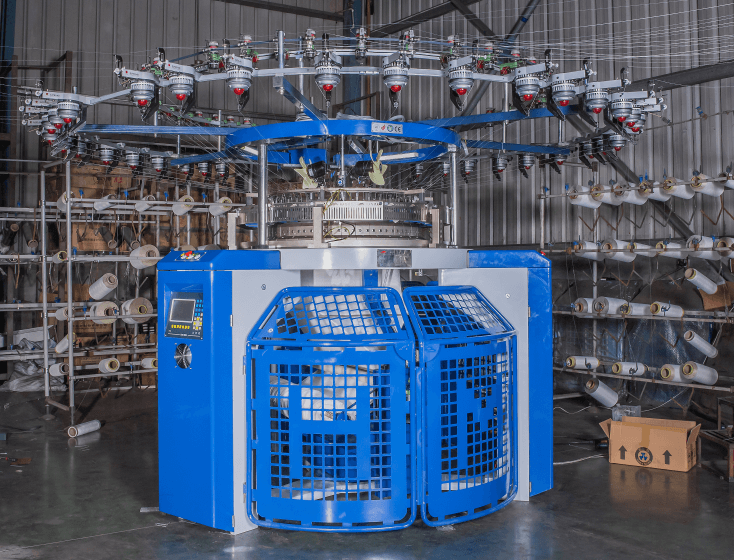

DOUBLE RIB JACQUARD CIRCULAR KNITTING MACHINE 01

DOUBLE RIB JACQUARD CIRCULAR KNITTING MACHINE

by

    • Product Application

    1 The machine adopts a Japanese WAC computer control system.

    2 With USB transmission, can storage and an input conveniently, can be produced various pattern.

    3 Jacquard technology combined with the transfer woven, create production of advantage.

    4 Controlled by computers, it is with off memory function and storage function using operating on the machine can be woven various pattern freely.

    5 Can be equipped with a spandex device, woven various fabrics.

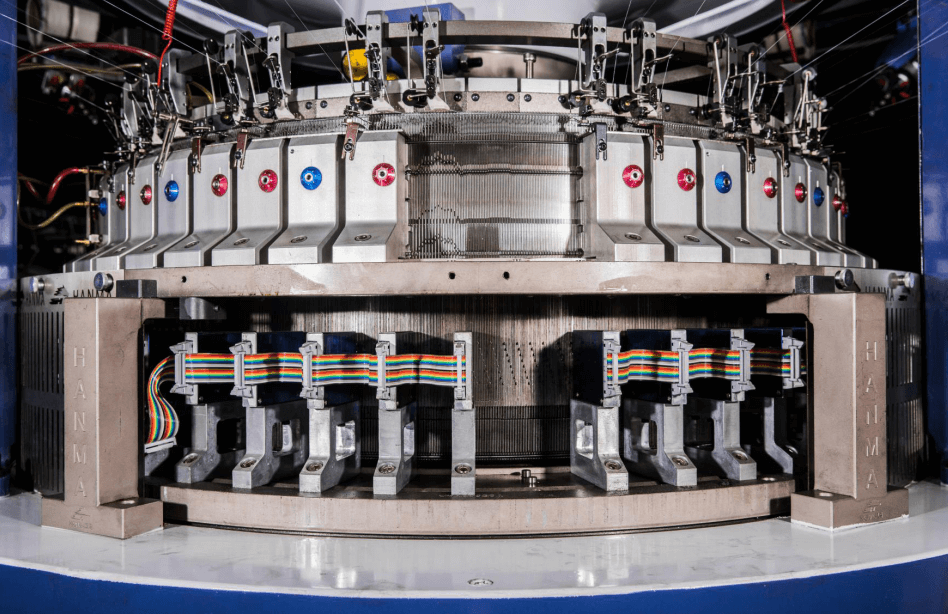

    1．Matched with three-way full-width jacquard needle selecting system (knit,miss,tuck) with steady operation.
    2．Computer system is easy to operate. It can be able to read standard graphics and files through jacquard controller in a short time and with high efficiency.
    3．The machine is capable of weaving any full-width jacquard cloth of unrestrained length and width, and helping the knit mill to weave any popular pattern and improve our product value.

    Diameter30″-38″
    Gauge8G-18G
    Feeder54F-84F
    Speed12-18r/min
    Power5.5HP
    Condition: NewProduct Type:fabricType:CircularProduction Capacity:250-750kg
    Place of Origin: Fujian China
    (Mainland)    		Brand Name:HANMA
    (circular knitting machine)    		Model Number:HM-DF4
    (circular knitting machine)    		Power(W):5.5kw
    (circular knitting machine)
    Knitting Style: knittedKnitting Method: DoubleComputerized: YesWeight:2.5TON
    Dimension(L*W*H):2.35*2.28*2.28MAfter-sales Service Provided:Engineers
    available to service machinery overseas    		speed:0-30RPM
    Certificate: CE
    machine type: Double rib jacquardturn way: anticlockwise
    fabric function:sports garment
    NoDescriptionSupplierBrandQuantity
    1Insert flake type cylinde&dlar(Germany metal)HanmaChina1 unit
    2NeedlesGroz-beckertGermany1 Set

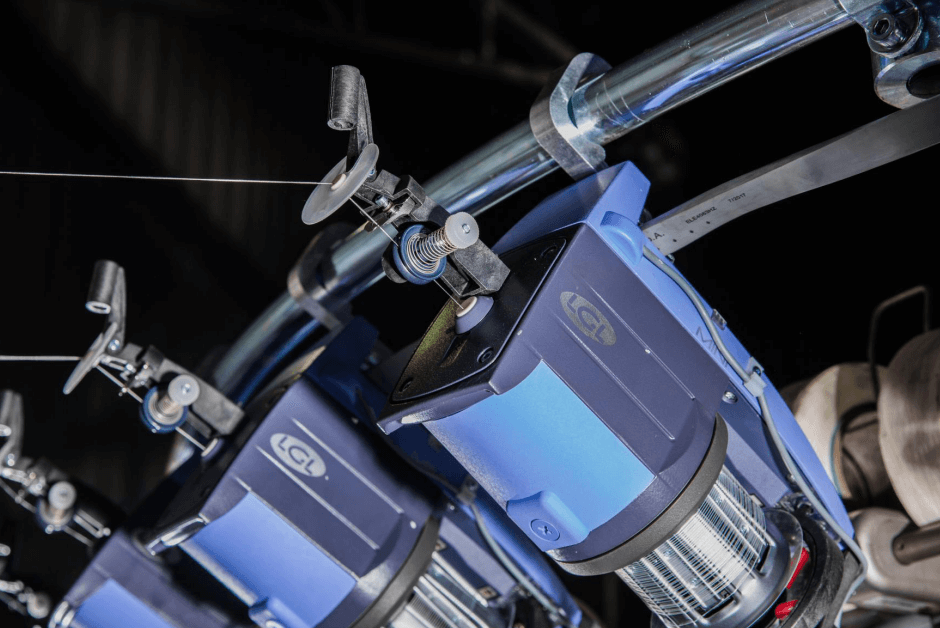

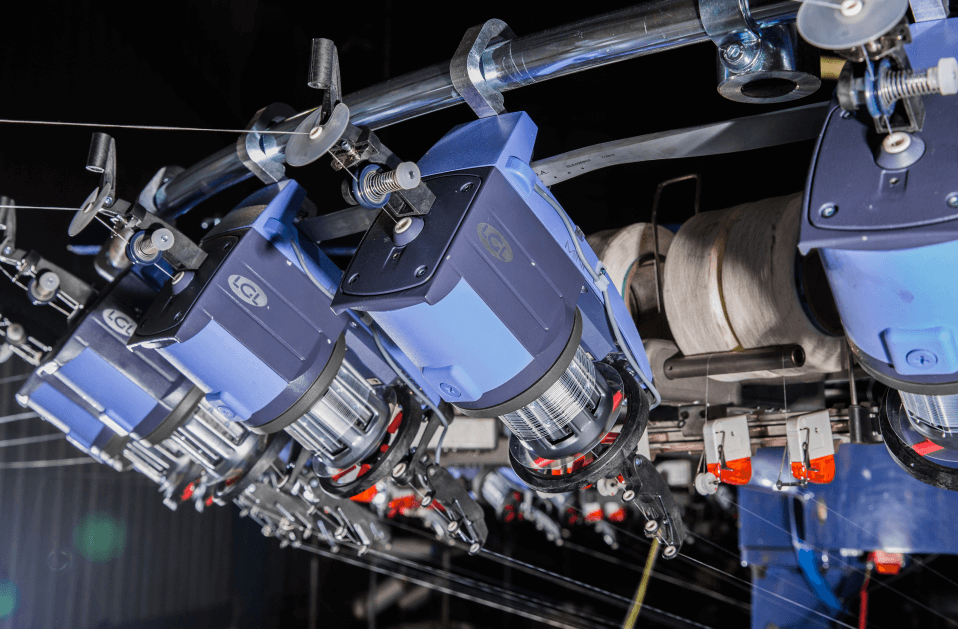

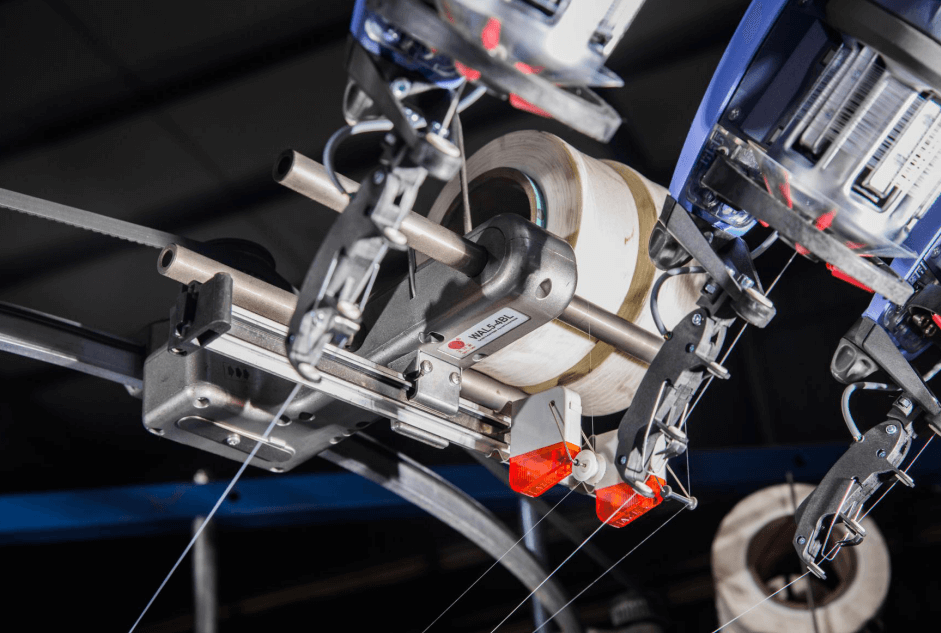

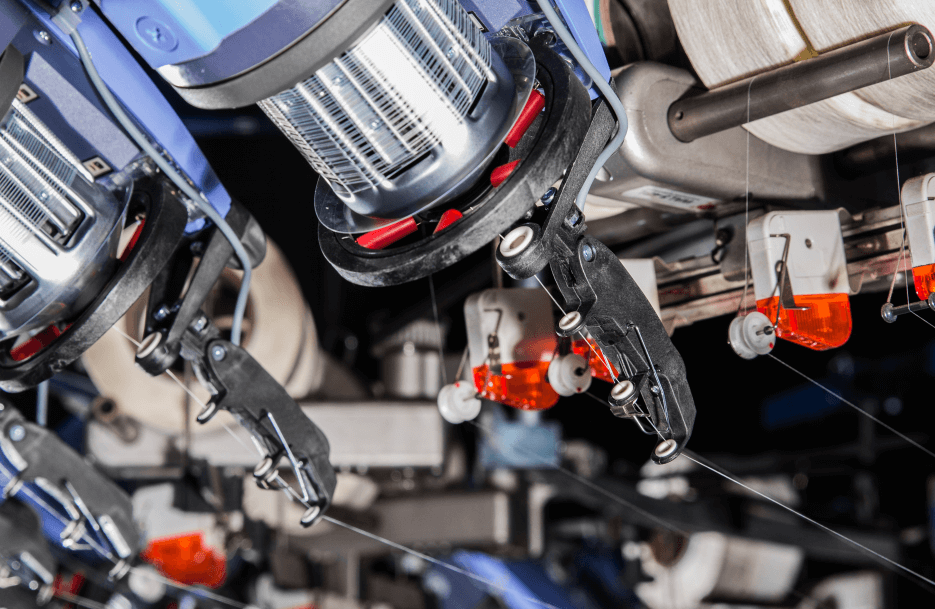

    3Electric Positive storage yarn feedersLGLItaly1 Unit
    4Oiling lubricatorHongshengChina1 Set
    5Yarn CreelHanmaChina1 Set
    6One way Take-up device.YongtaiChina1 Set
    7InvertorSunyueChina1 Set
    8Fabric Spreader equipmentHanmaChina1 Set
    9Sinker CamsJapan1 Set
    10Knit camsJapan
    11Digital indicator control panelHanmaChina1 set
    12Computer systemChuangdaChina1unit

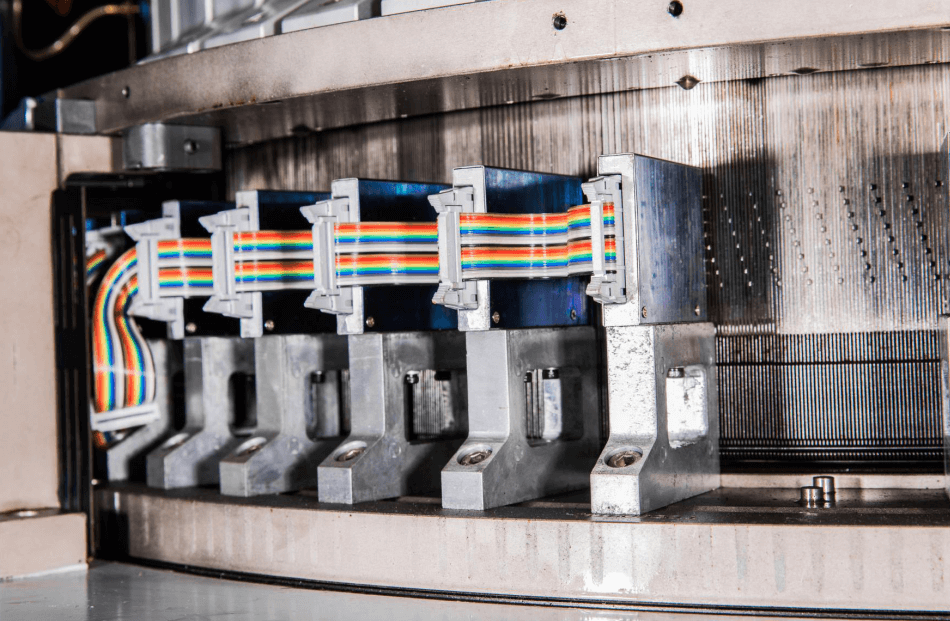

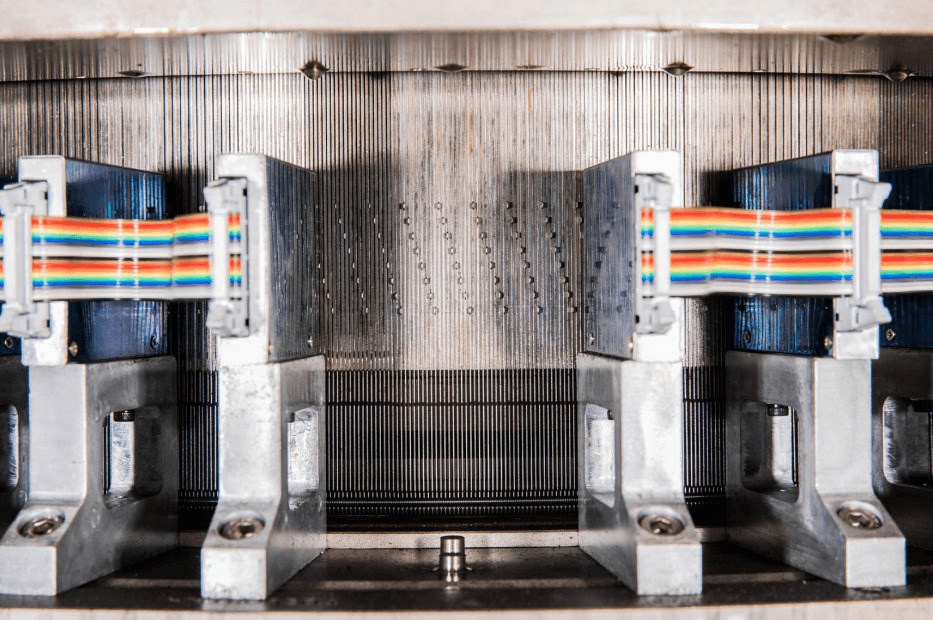

    13Needle selector systemChuangdaChina1 unit
    14Automatic dust fans with blower equipment.San songChina1 set
    15Radar type round 360’ clear dust equipmentSan songChina1 set
    16Spare tools  1 set
    17Operation manual for invertor & controller panel  1 set
    18  Extra Spare parts : (a) 100pcs needles (b)100pcs sinkers  (c)Feeders 2pcs   (d)Air blower gun 1 set  (e)Fuse 4pcs    (f) Yarn carrier 1pcs  (g)Needle oil 1 liter(h) extra needle selector 1 pc

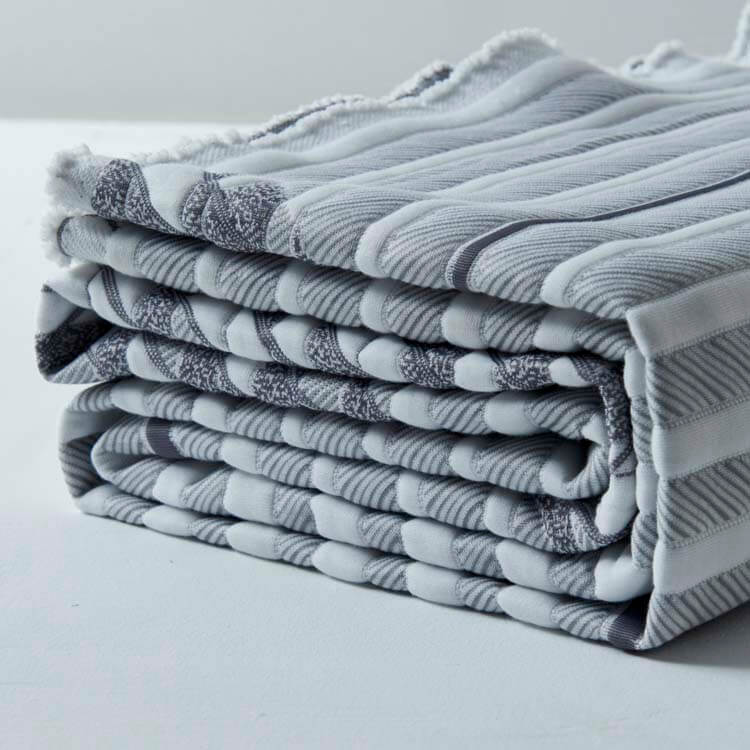

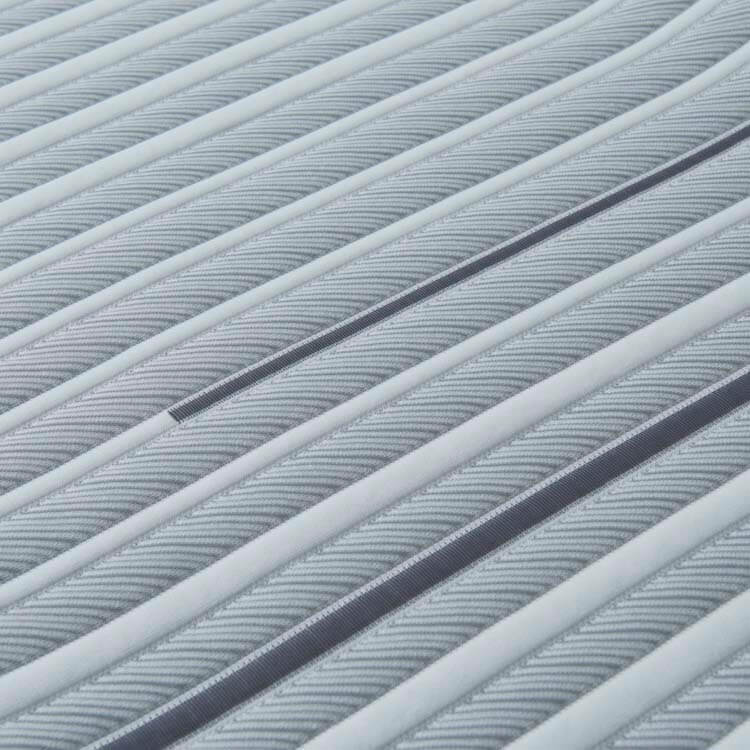

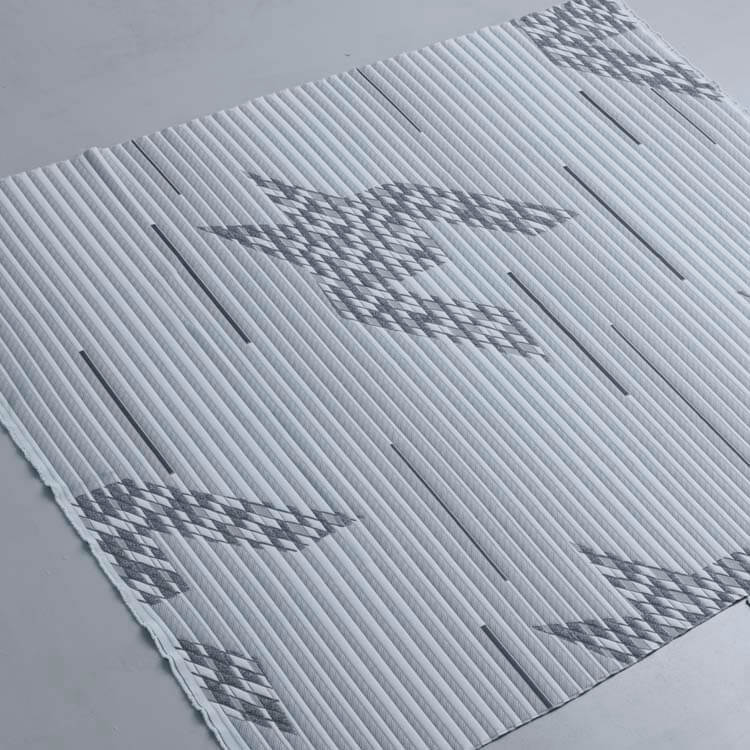

    Weight400 gsm
    Width220cm
    PatternJacquard
    Colorsame as our picture or as you request
    ThicknessThin
    TechnicsKnitted
    UseMattress

    Related RFQ

    One Year. Can’t Guarantee: Needle, Belt, Sinker, Feeder, Lamp, And The Usage Is Not Appropriate. If need installation and test the machine, the room and board in buyer factory including the return ticket and visa fee of the technician of our company will be in buyer account, meanwhile buyer will pay to our technician 80 usd per day as per subsidy.

    You can make the payment to our bank account, Western Union or PayPal:
    30% deposit in advance, 70% balance against the copy of B/L.

    Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.

    Company Profile

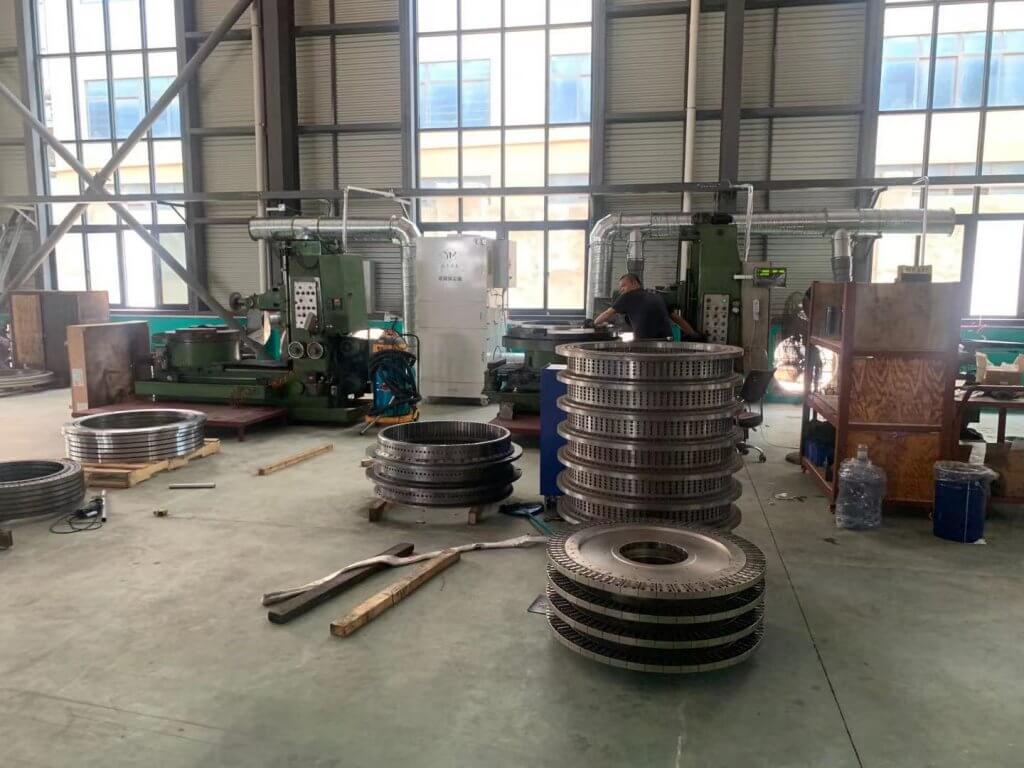

    Zhenfu Knitting Machinery Co., Ltd. is a professional enterprise specializing in manufacturing machines, woven products, and apparel. We are also engaged in the production and design of fabrics and large diameter circular knitting machines for woof weaving and knitting. We have three trademarks — “HANMA”, “LUHU”, “ZHENFU”.We introduced foreign advanced computer process equipment and test and measurement instruments.

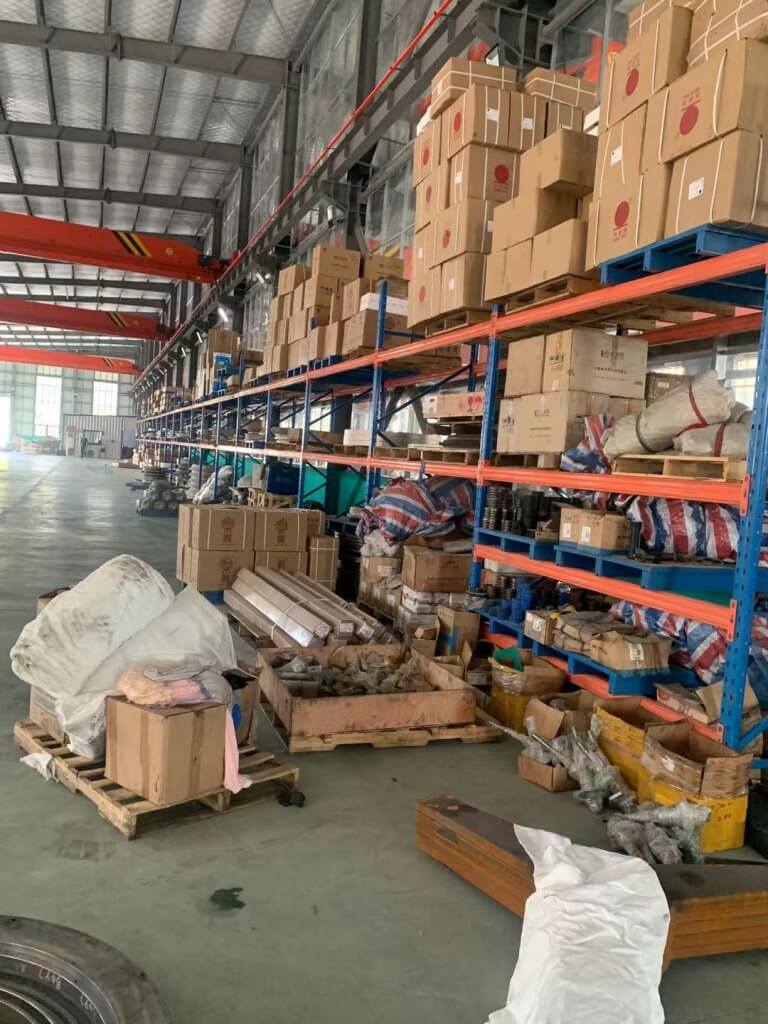

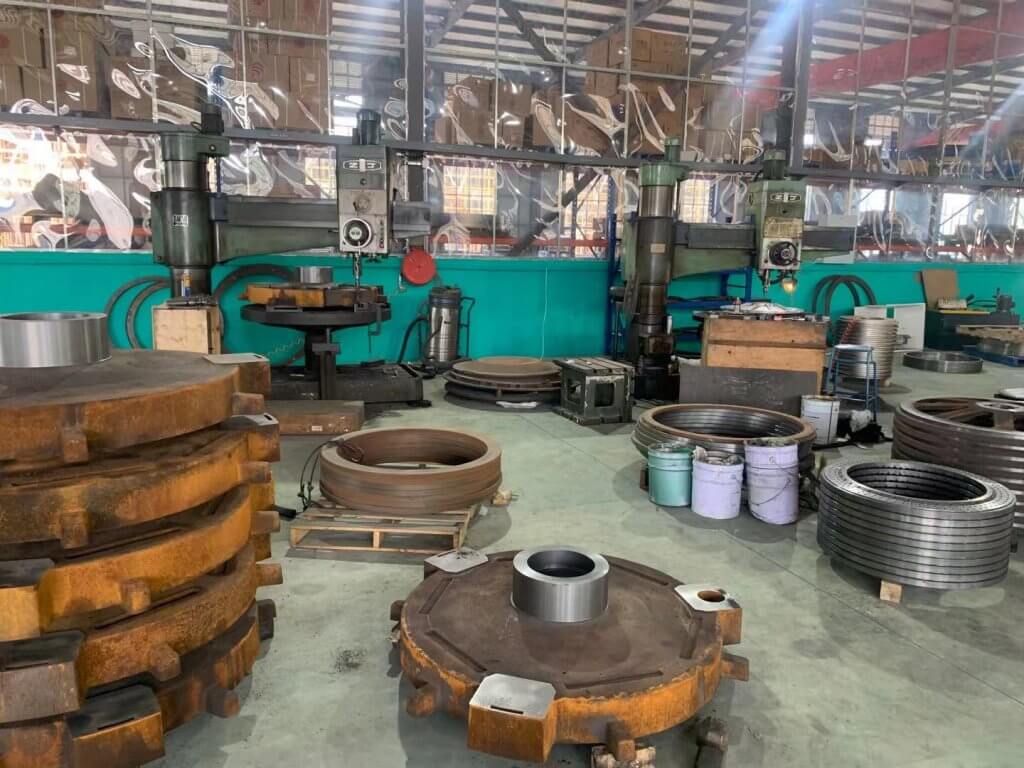

    • new factory 27
    • new factory 26
    • new factory 19
    • new factory 18
    • new factory 17

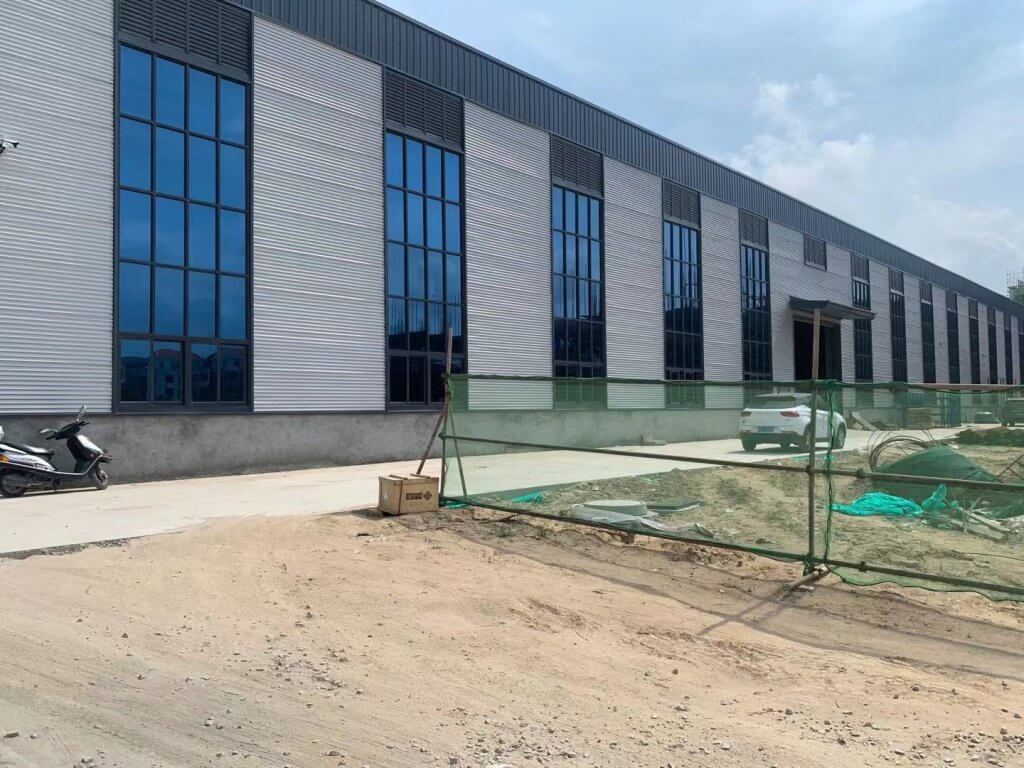

    • new factory 25
