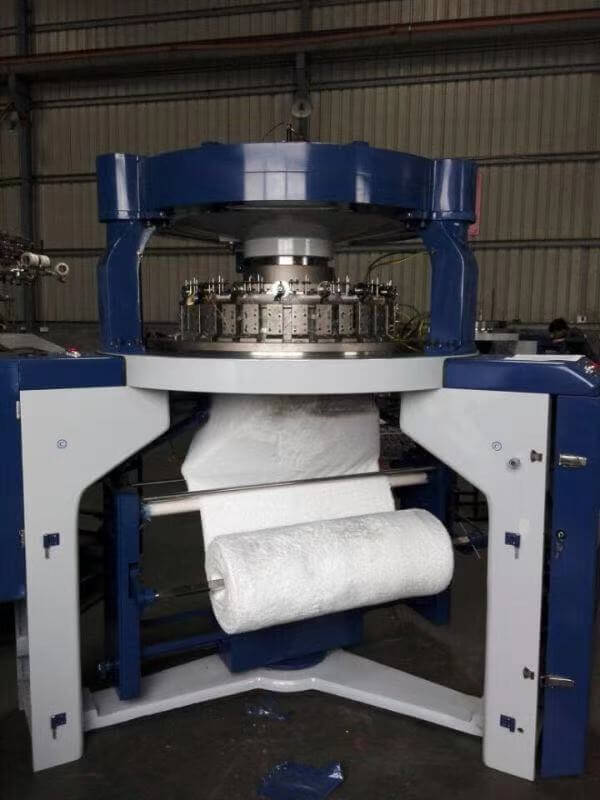

PILE LOOP SHEARING CIRCULAR KNITTING MACHINE

Product Description

The major advantages of the machine: shearing can be done in the machine synchronously, to reduce the losses of materials and save the cost.

Product Application

It can replace warp knitting machines to weave all kinds of new fabric, such as coral velvet, fan velvet, pine velvet, pine needle velvet, pearl velvet, Teli velvet, snow deep velvet, ice flower velvet, crane velvet, peafowl velvet, plush, etc, as the ideal fabric of various high-class clothes, bedding articles, carpet, adorn in the automobiles, toys, etc, with many uses.

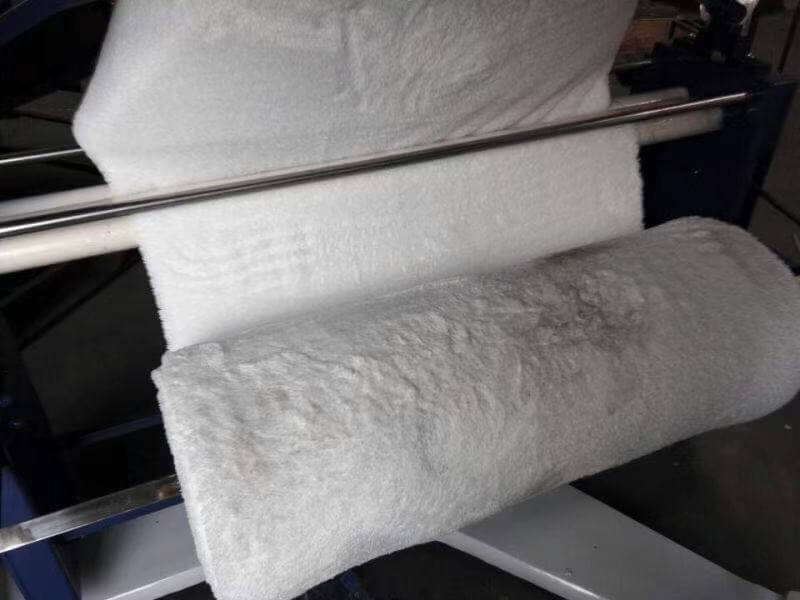

It mainly knit high pile fabrics. The length of the pile can be exchanged simply, varieties can be replaced easily. It can also produce plush, blankets, coral cashmere, cashmere pea.

1. The loop pile machine possesses a line shaft leading two gears to drive synchronously.Therefore, the drive precision is guaranteed and no bearing indentation wil be left. The knitted fabric can be flat and level without any unfavorable condition like folds.

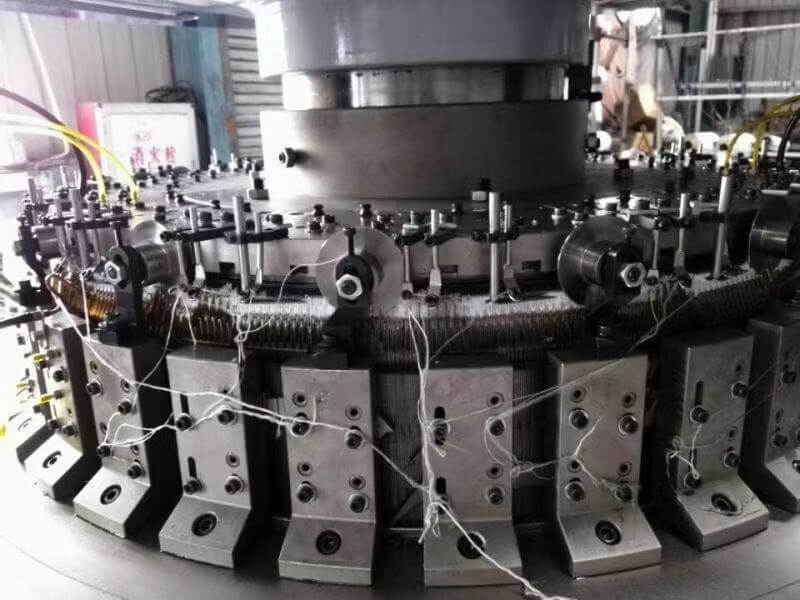

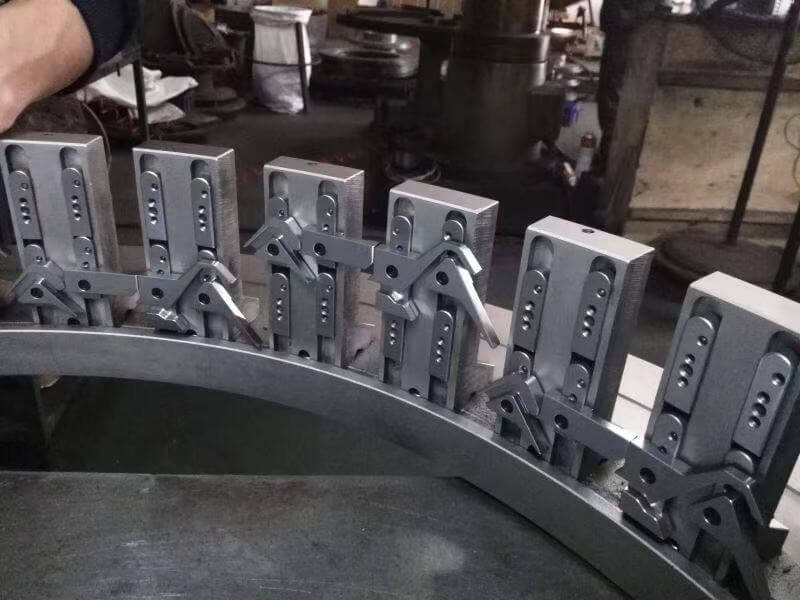

2. Manufactured from high-density gray iron alloy,the cam boxes have got aging treatment for a set time ,which effectively avoids expansion and contraction caused by temperature variation between cold boot and normal running of the machine ,and has the knitting precision under control,
3. Its frame has receive a natural aging treatment, the oil-immersed gear meshing drive model does well in high stability and low noise,
4. There are dust exhausting fans at the top and bottom of the compact machine.These fans are able to completely remove sheared velour,prolong the service life of needles and sinkers,and promote operating efficiency.

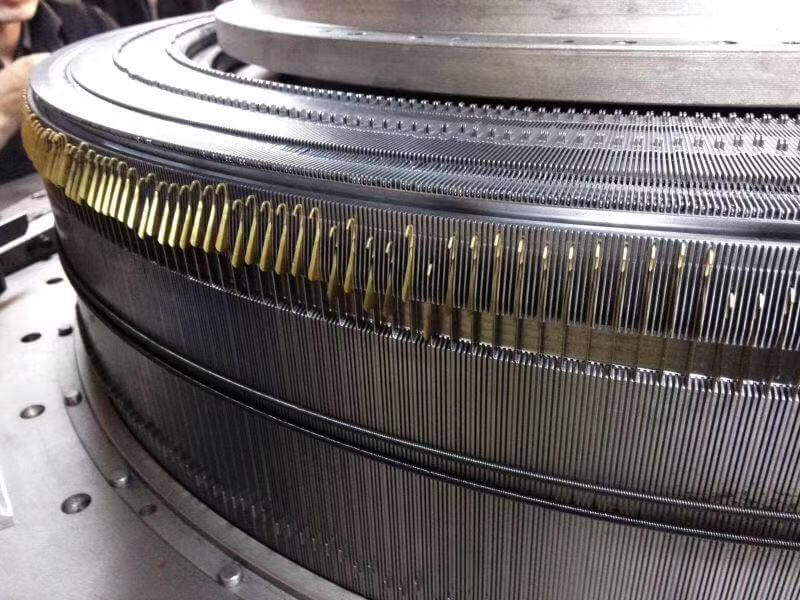

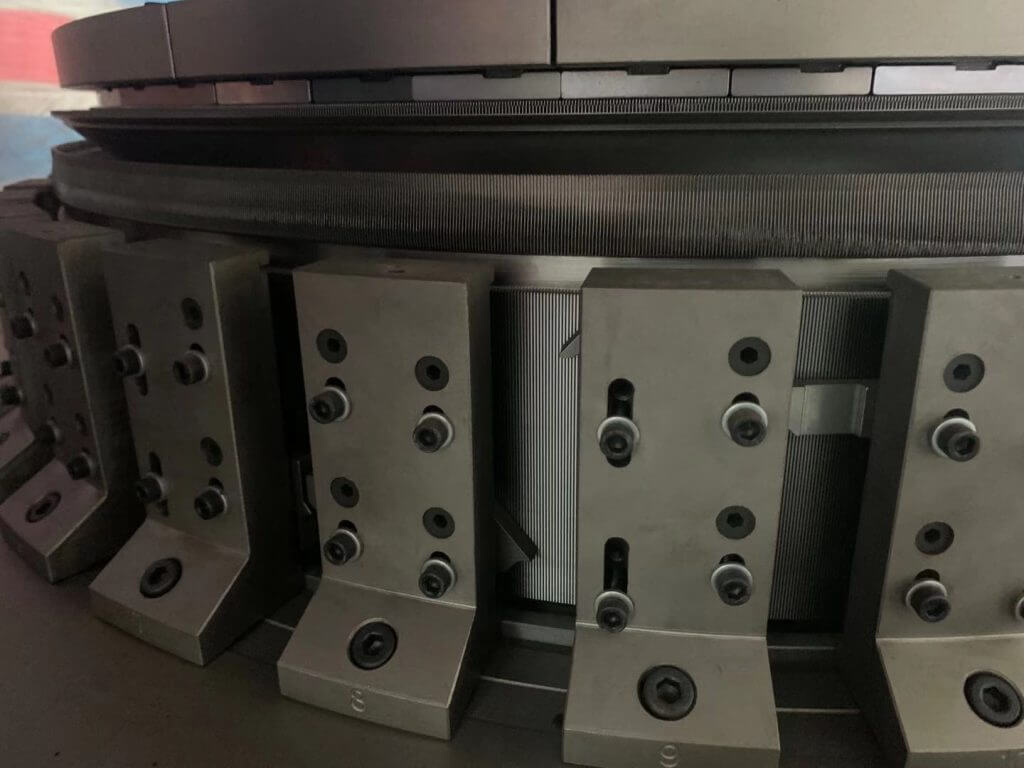

5. With 2 tracks for the dial and 1 track for the cylinder,it runs quickly and meets the needs for high output.

Diameter8″-44″
Gauge8G-32G
Feeder8F-120F
Speed15-22r/min
Power2-11.5HP
Height16-45mm

related products

contract us

Condition: NewProduct Type:fabricType:CircularProduction Capacity:250-750kg
Place of Origin: Fujian China
(Mainland)
Brand Name:HANMA
(circular knitting machine)
Model Number:HM-DF4
(circular knitting machine)
Power(W):5.5kw
(circular knitting machine)
Knitting Style: knittedKnitting Method: SingleComputerized: NoWeight:2.5TON
Dimension(L*W*H):2.35*2.28*2.28MAfter-sales Service Provided:Engineers
available to service machinery overseas
speed:0-30RPM
Certificate: CE
machine type: Pile loopturn way: anticlockwise
fabric function:sports garment

NoDescriptionSupplierBrandQuantity
1Insert flake type cylinde&dlar(Germany metal)HanmaChina1 unit
2NeedlesGroz-beckertGermany1 Set
3Positive storage yarn feedersHanmaChina1 Unit
4Oiling lubricatorHongshengChina1 Set
5Yarn CreelHanmaChina1 Set
6One way take-down deviceHanmaChina1 Set
7InvertorSunyueChina1 Set
8Fabric Spreader equipmentHanmaChina1 Set
9CamsJapan1 Set

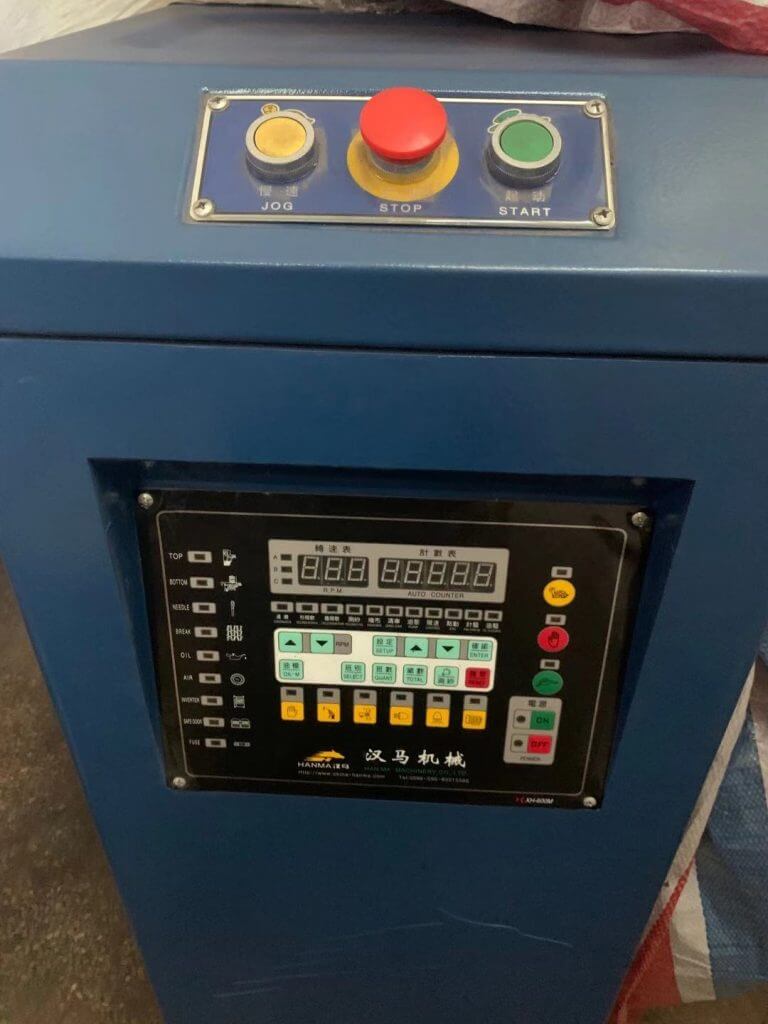

10Digital indicator control panelHanmaChina1 set
11Automatic dust fans with blower equipment.San songChina1 set
12Radar type round 360’ clear dust equipmentSan songChina1 set
13Spare tools
14Operation manual for invertor & controller panel
15Extra Spare parts : (a) 100pcs needles (b)Feeders 1pcs   (c)Air blower gun 1 set  (d)Fuse 4pcs    (e) Yarn carrier 1pcs  (f)Needle oil 1 liter
Product Namehigh-end thick weaving pile cutting sofa velvet fabric
Width142cm
Weight470gsm
Material89%cotton 11%polyester
Techologyweaving pile cutting fabric
Usagesofa,curtain,pillow ,bag,seat ,decoration,DIY and so on.

Related RFQ

Product quality is our core competitiveness.We will carry out a through inspection of all the circular knitting machines and it’s parts before delivery.so as to guarantee high product quality,if there is any quality problem under warranty,we will replace related parts for free.

We rely on our excellent after-sale service to keep long-term cooperative relationship with customers.If you require installing machine or solve technicial problems,We will immediately arrange technicians and provide you with satisfactory service.

Our circular knitting machines are all controlled by microcomputers,which facilities operation and improves safety.The new-type 120 series cloth-rolling machines are applied,due to high stability,they can adjust the crimp and tension according to diverse fabrics,guarantee uniform density of colth,and prevent flaws like marks.We adopt the needles of Groz-Beckert and sinkers of Kern-Liebers.In addition,every parts,including the motor,inverter.oliler,yarn storage device and yarn creel,is selected rigorous,so as to enhance product quality.Since all these parts have undergone electroplating,polishing and baking finish by dedicated paint,our machines look lustrous and enjoy long working life.

Our machines are proud of high precision,good quality,large output and fast revolving speed,They implement the central stitch system,and are easy to use.The motors contributes to energy saving.

Company Profile

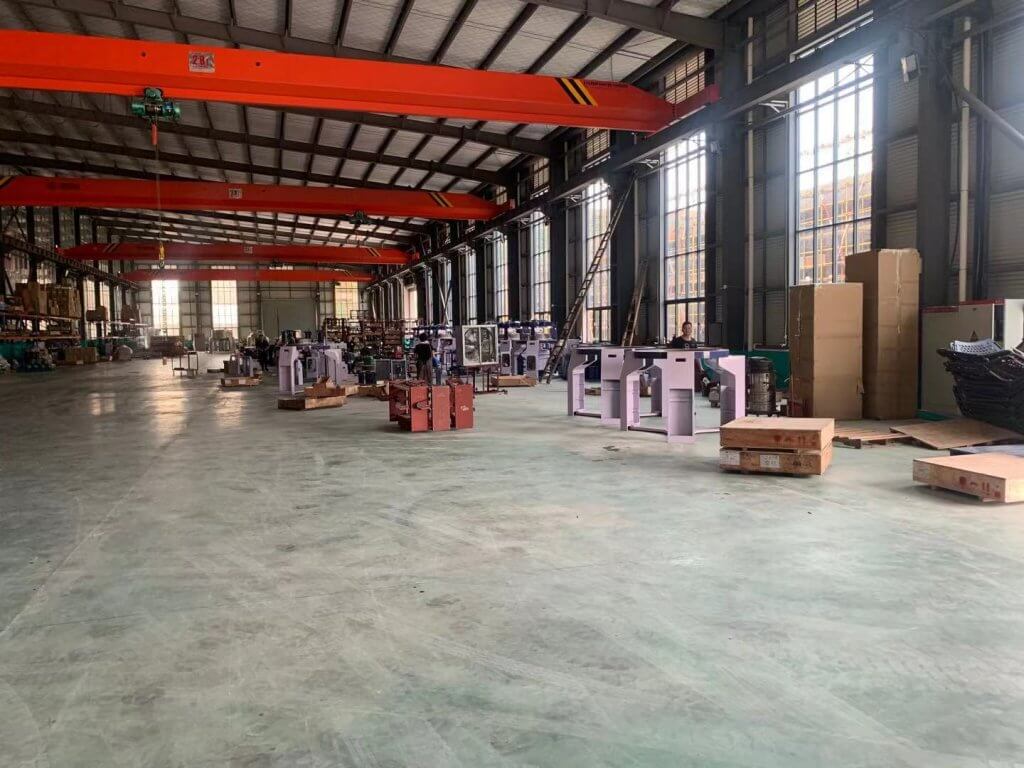

Zhenfu Knitting Machinery Co., Ltd. is a professional enterprise specializing in manufacturing machines, woven products and apparel. We are also engaged in the production and design of fabrics and large diameter circular knitting machines for woof weaving and knitting. We have three trademarks — “HANMA”,”LUHU”,”ZHENFU”. We introduced foreign advanced computer process equipment and test and measurement instruments. We also research information reflection from consumers for stratifying customers’ different demands. We have a group of engineer technicians with rich experience. They can develop new products according to customers’ specifications.
