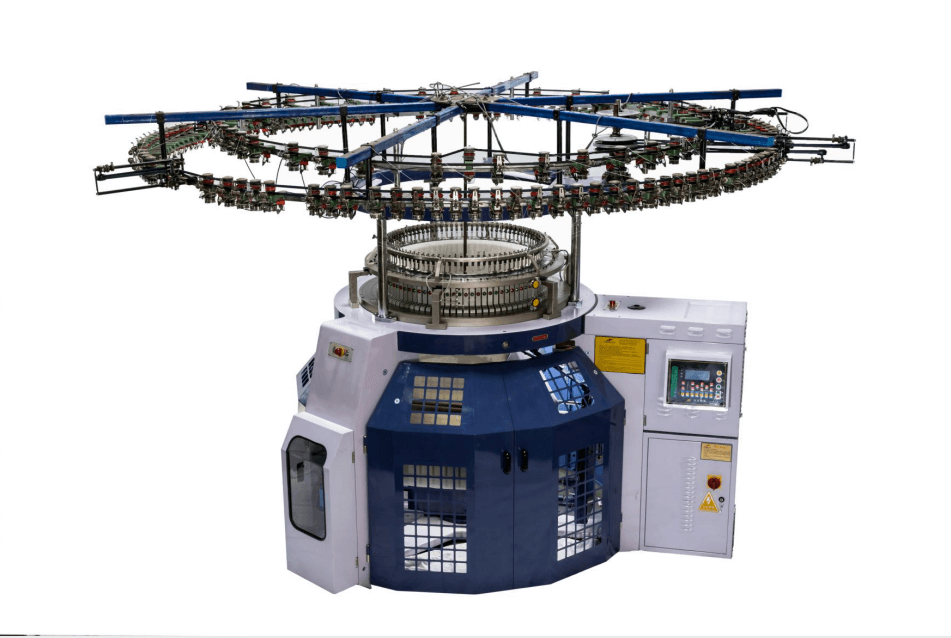

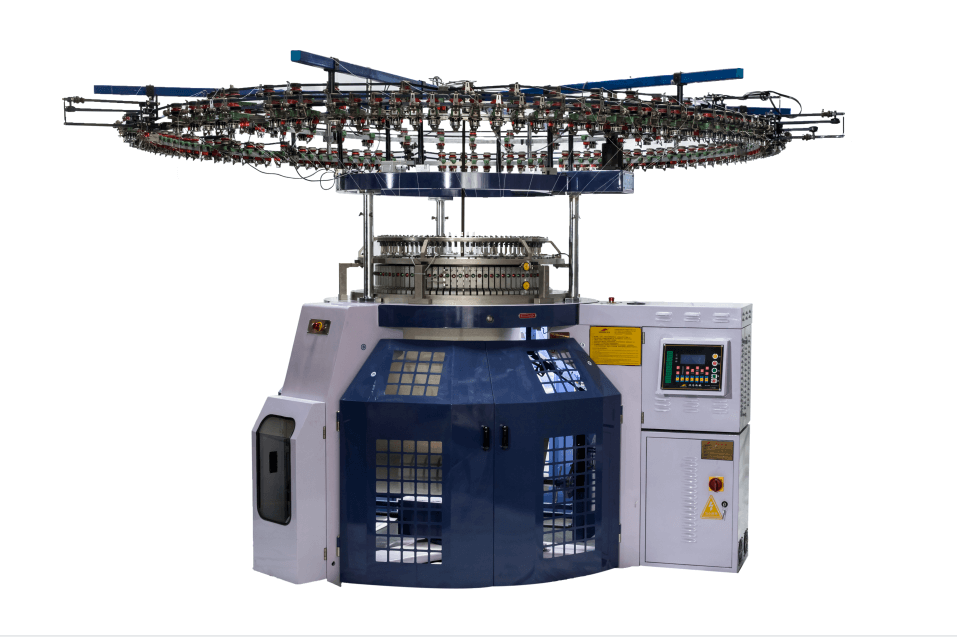

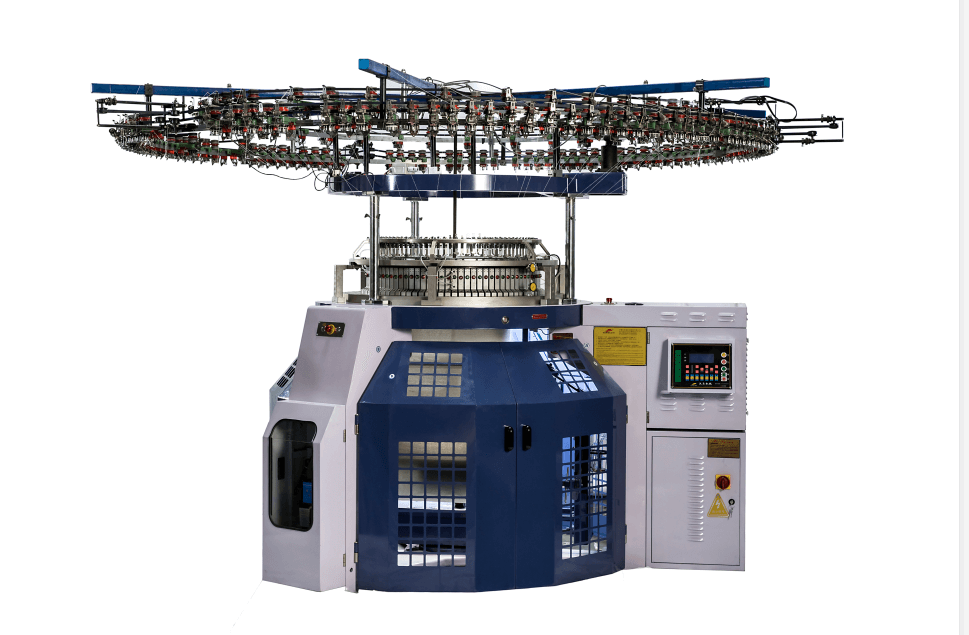

Product Introduction:

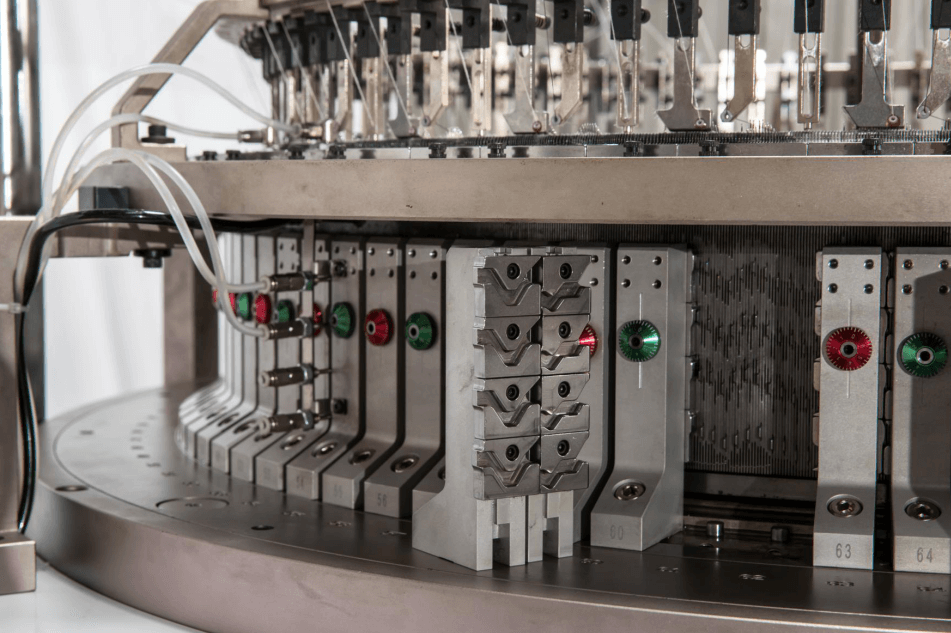

Using four-track cam design with closed type, terry yarn, laid-in and ground yarn should be adopted in weaving, able to weave fish scale, twill and France fleece cloth.

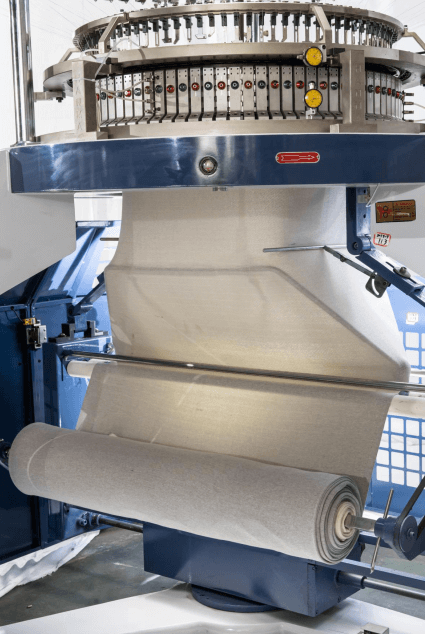

Cloth cover can be used as through brushed fabric , with high output.

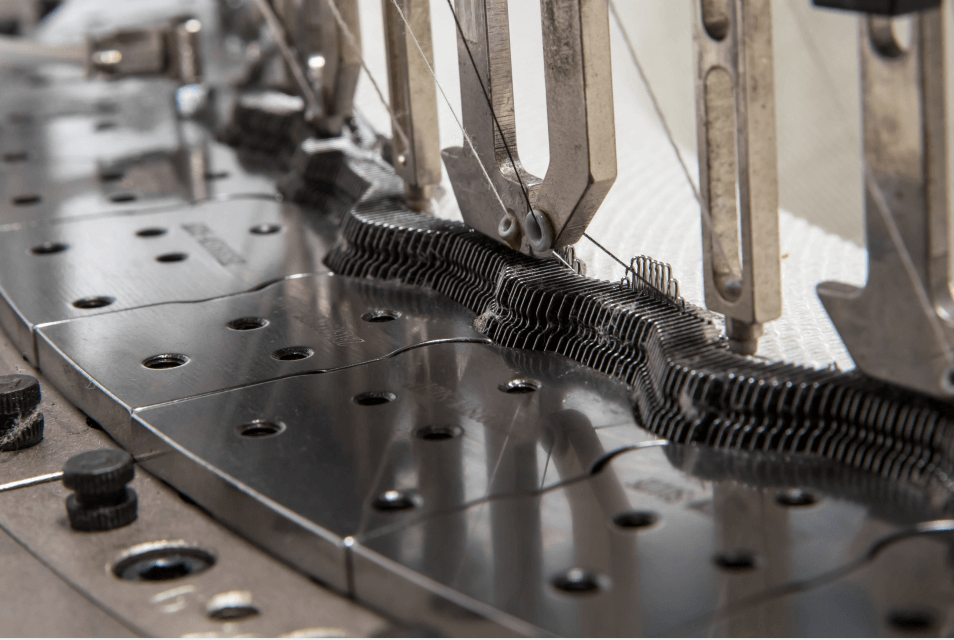

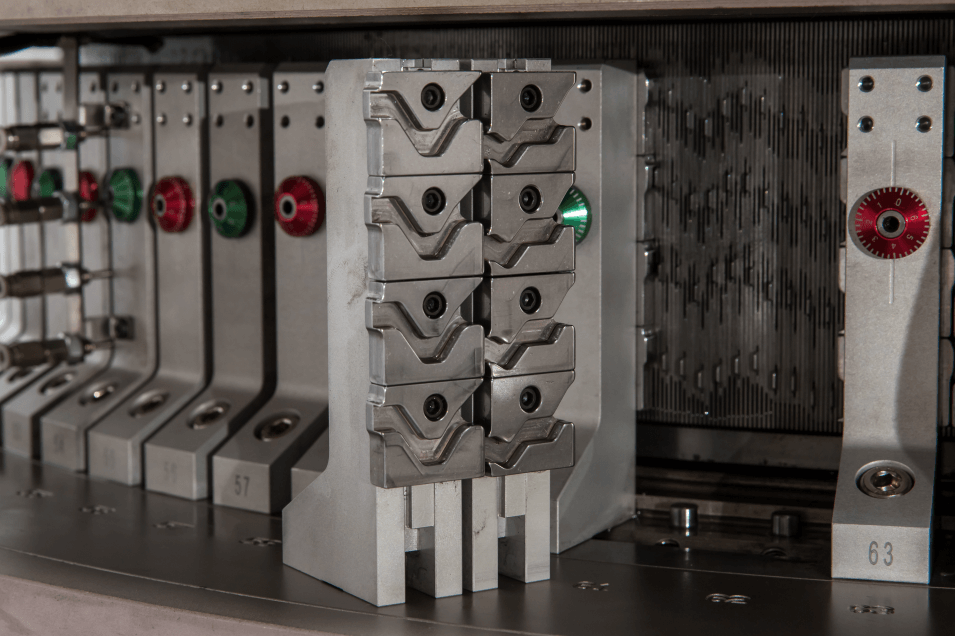

By adjusting the cam of the sinker, it can easily adjust the length of plush yarn. It is suitable for high-class women’s wear, sports suits, pajamas, cold-proof clothing, etc.
One machine has lot of functions, and the fleece knitting machine can be changed into single machine or terry knitting machine just instead of the key parts.

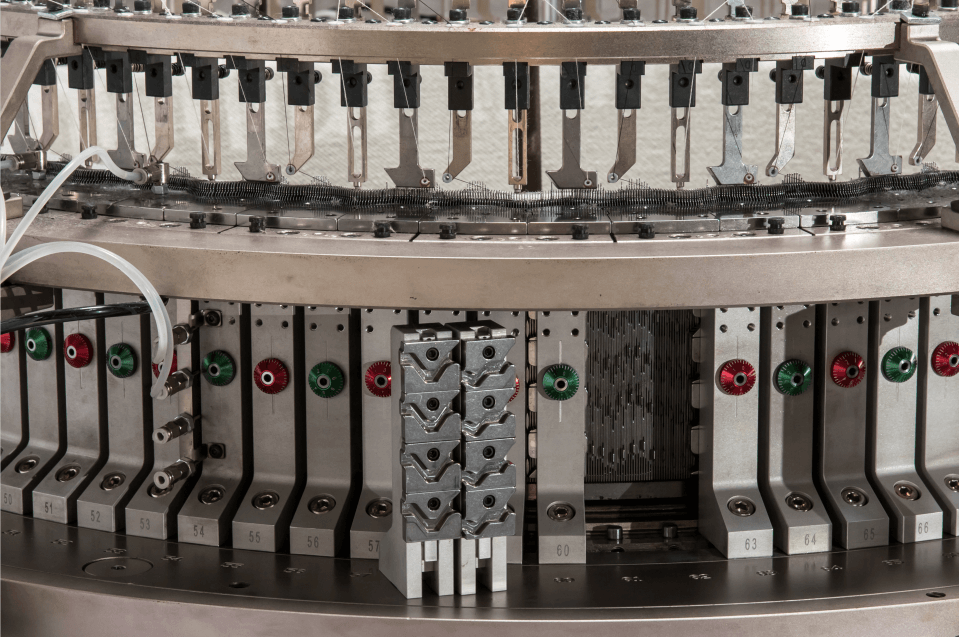

It can be converted into a machine for fleece, diagonal knitting, double French fleece (polar), herringbone. The front can be turned into velvet after flocking.This three-strand fleece machine offers high production due to the high number of feeders included, replacing older and obsolete models. The height of the loop can be adjusted by changing the plates and cams. Utilizes * four cam tracks for design. The result of the woven fabric is used mostly in fashion, sports and cold-proof clothing.
Diameter：8″-44″
Gauge：16G -28G
Feeder：24F -132F
Speed：16-30r/min
Power：3HP -11.5HP
related product
Contract us
| Condition: New | Product Type:fabric | Type:Circular | Production Capacity:250-750kg |
| Place of Origin: Fujian China (Mainland) | Brand Name:HANMA (circular knitting machine) | Model Number:HM-DF4 (circular knitting machine) | Power(W):5.5kw (circular knitting machine) |
| Knitting Style: knitted | Knitting Method: Single | Computerized: Yes | Weight:2.5TON |
| Dimension(L*W*H):2.35*2.28*2.28M | After-sales Service Provided:Engineers available to service machinery overseas | speed:0-30RPM | Certificate: CE |
| machine type: single jersey | turn way: anticlockwise | fabric function:sports garment |
| No | Description | Supplier | Brand | Quantity |
| 1 | Insert flake type cylinder &dial(Germany metal) | Hanma | China | 1 unit |
| 2 | Needles | Groz-beckert | Germany | 1 set |
| 3 | Sinkers | Kern liebers | Germany | 1 set |

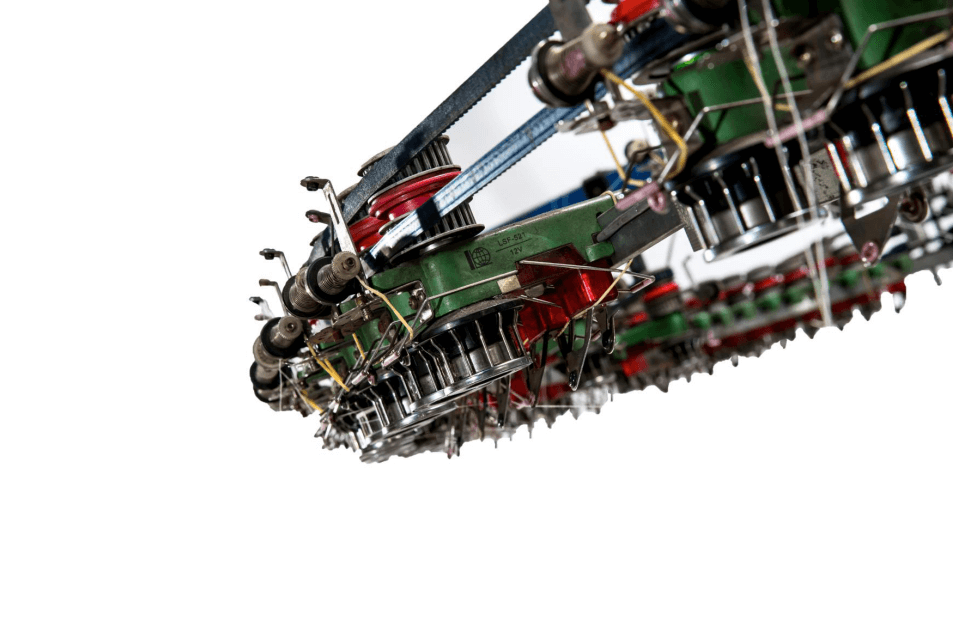

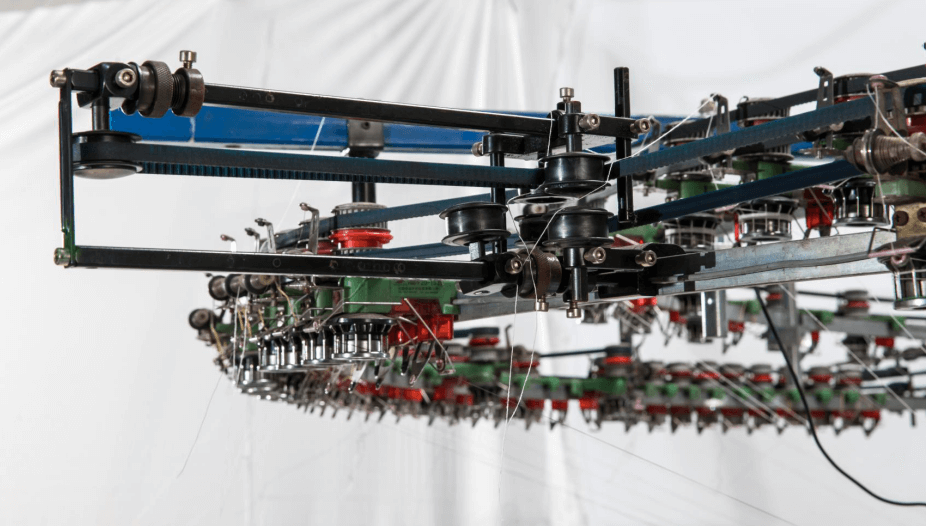

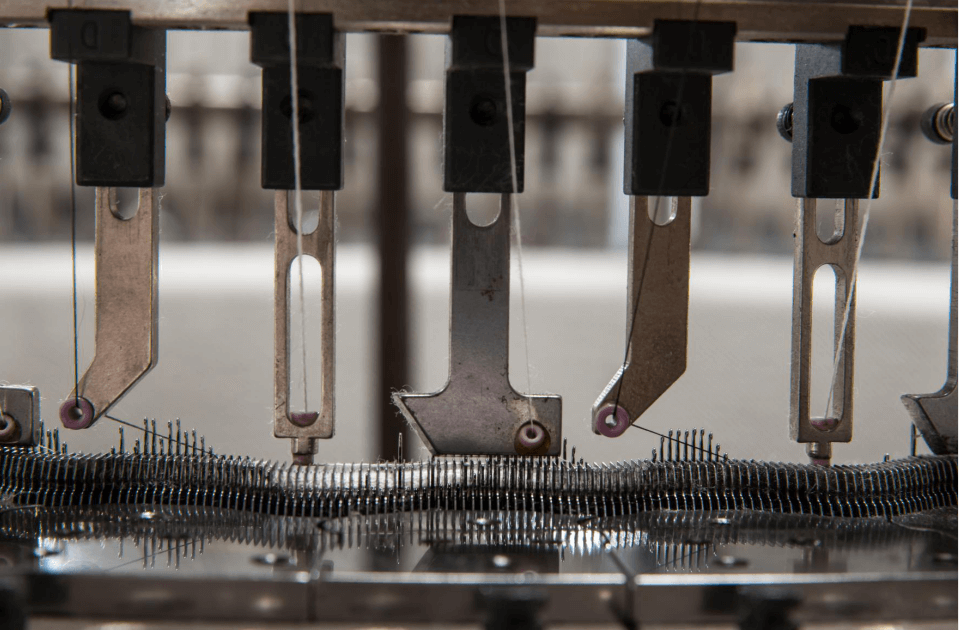

| 4 | Positive storage yarn feeders Neo | Hanma | China | 1 unit |
| 5 | Oiling lubricator | Hanma | China | 1 unit |
| 6 | Yarn creel | Hanma | China | 1 set |

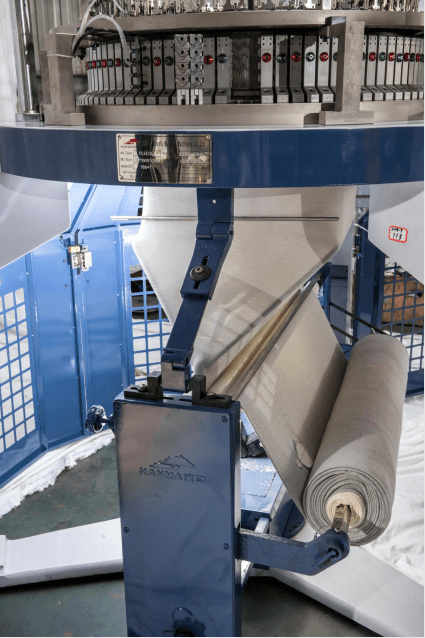

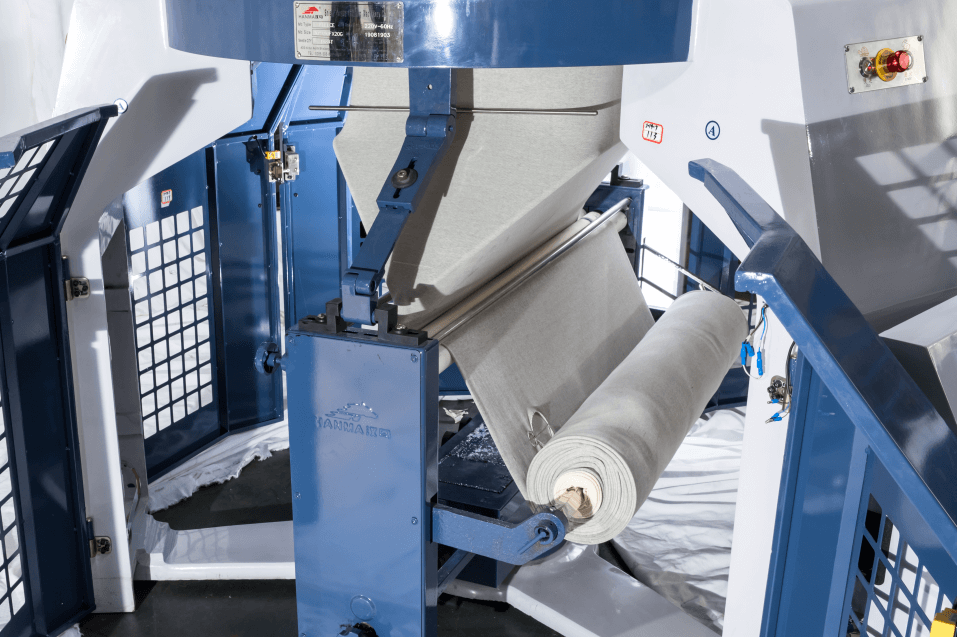

| 7 | One ways Take-down device | Yong tai | Taiwan | 1 set |
| 8 | Invertors for motor controller | Sunyue | Taiwan | 1 set |
| 9 | fabric Spreader equipment | Hanma | China | 1 set |
| 10 | cam | Hanma | China | 1 set |

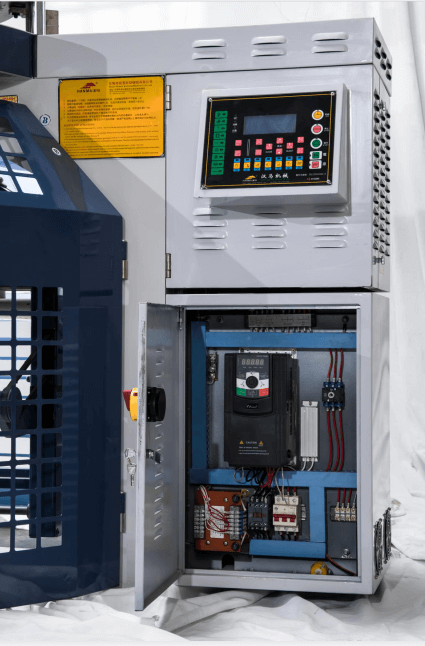

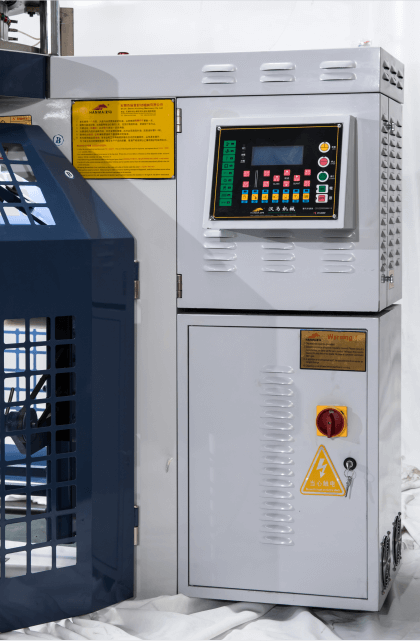

| 11 | Control panel | Hanma | China | 1 set |
| 12 | Automatic dust fans with blower equipment. | San song | China | 1 set |
| 13 | Radar type round 360”Clear dust equipment | San song | China | 1 set |
| 14 | Motor | Hanma | Taiwan | 1 set |
| 15 | Spare tools | 1 set | ||
| 16 | Operation manual for invertors & controller panel | 1 set | ||
| 17 | Extra Spare parts : (a) 100pcs needles (b)100pcs sinkers (c)Feeders 1pcs (d)Air blower gun 1 set (e)Fuse 4pcs (f) Yarn carrier 1pcs (g)Needle oil 1 liter |
| Product | Minky fabric |
| Composition | 100% polyester |
| Width | 160cm |
| Weight | 180gsm |
| Knitted type | warp knitting |
| Color | 52 colors in stock, customizable |
Related RFQ
Company Profile
Hanma company is a professional circular knitting machine factory. We are manufacturing circular knitting machines for 17 years, our products have high stability, high speed, and easy operation. We have to sell all over the world.
