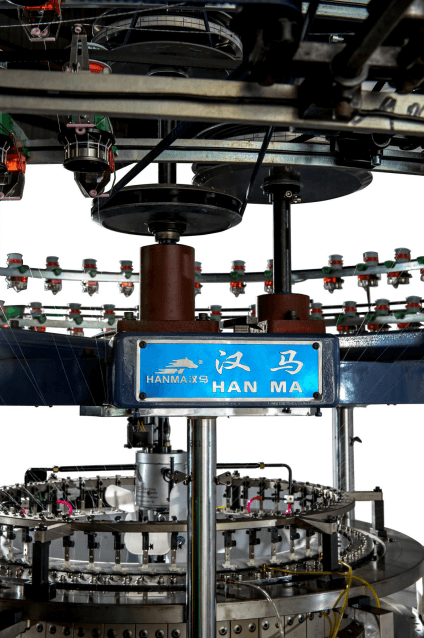

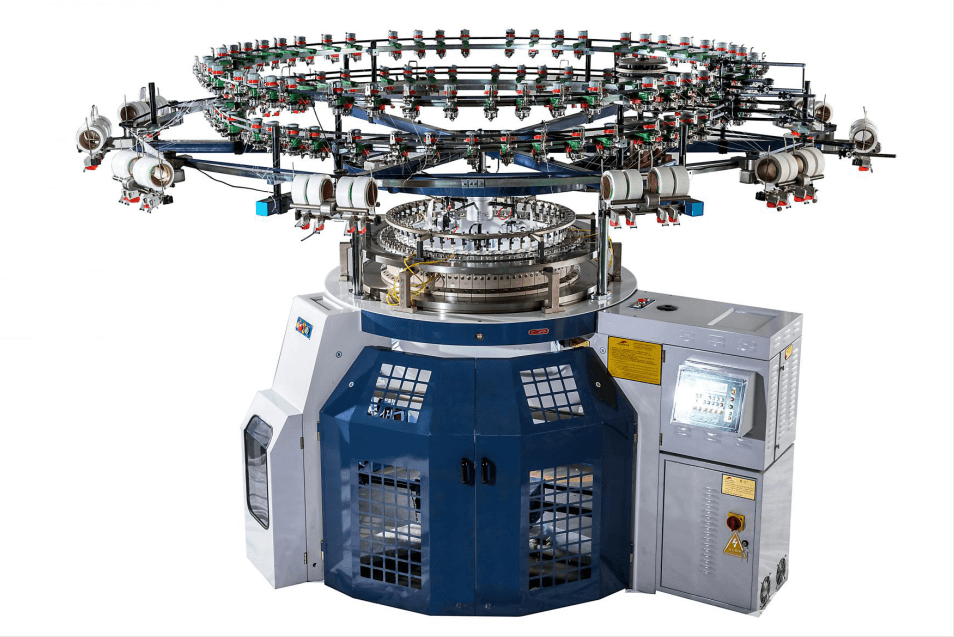

SINGLE TERRY CIRCULAR KNITTING MAchiNE

Complete and sophisticated chestnut process design can be equipped with sinkers in different specifications. able to weave the towel fabric with different hair lengths.to change according to the different needs of customers. Models available are positive bale and negative bale double-loop series. for multiple choices of users. It can be woven into a protective surface cloth. fine fleece fabric.1amb fur.really beautiful cloth.etc.
This model can be changed into a single machine and fleece knitting machine by simply replacing parts and simple cam, suitable for open general single cloth and tissue cloth. with spandex rubber yarn. and it can be woven into flexible cloth. suitable for seasonal adjustment, to enhance the added value of the machine itself.

This machine is featured with different types of sinkers which can knit towels of different height of loops pile. This machine can be featured with reversed cams and normal cams respectively. A rich velvet with protrude loops can be knitted if the reversed cams are used, a velour will be produced after brushing the double side of the fleece while the normal cams are used. Moreover, a stretchy towel can be knitted when an additional device of lycra yarn feeder is installed.
     The fabrics knitted by this machine widthly available in senior garment, sportwear, infant or children clothes and industrial textiles etc. The products include: general terry fabric, blanket particles cloth or superfine fiber fabric etc.
     Single terry circular knitting machine: 25 rotation speed per minute, speedy, high productivity rate, average length of yarn, neat fiber pattern and yarn leak proof filling. This machine can be converted into Single Jersey four track circular knitting machine, three and fleece circular knitting machine or multi-feeder wide band of coloured garland machine.

Diameter:20″-38″
 Gauge:16G-28G
 Feeder:42F -102F
 Speed:16-30r/min
 Power:5.5-7.5KW

Contract us

NoDescriptionSupplierBrandQuantity

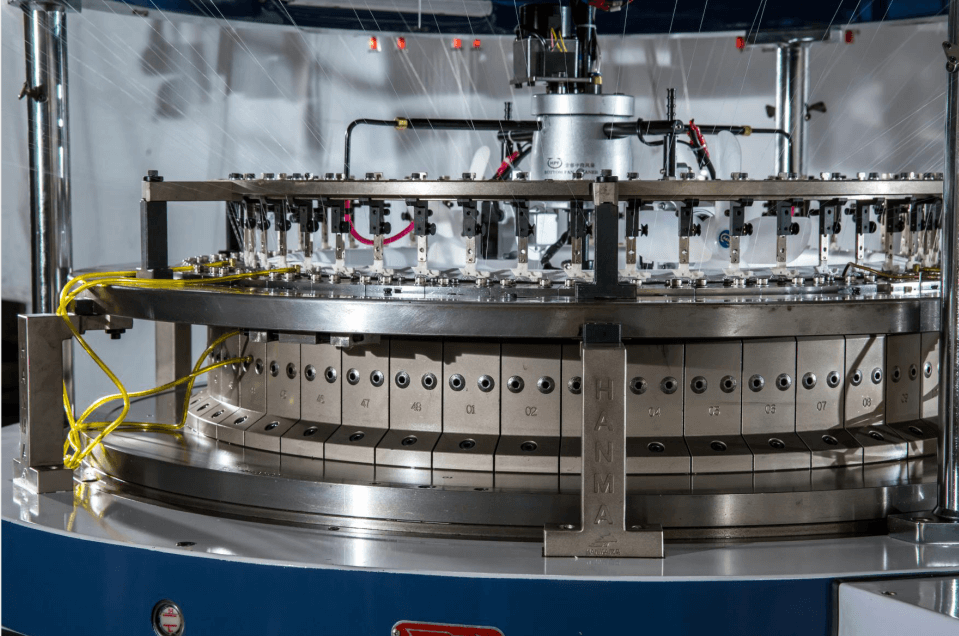

1Insert flake type cylinder &dial(Germany metal)HanmaChina1 unit
2NeedlesGroz-beckertGermany1 set
3SinkersKern liebersGermany1 set

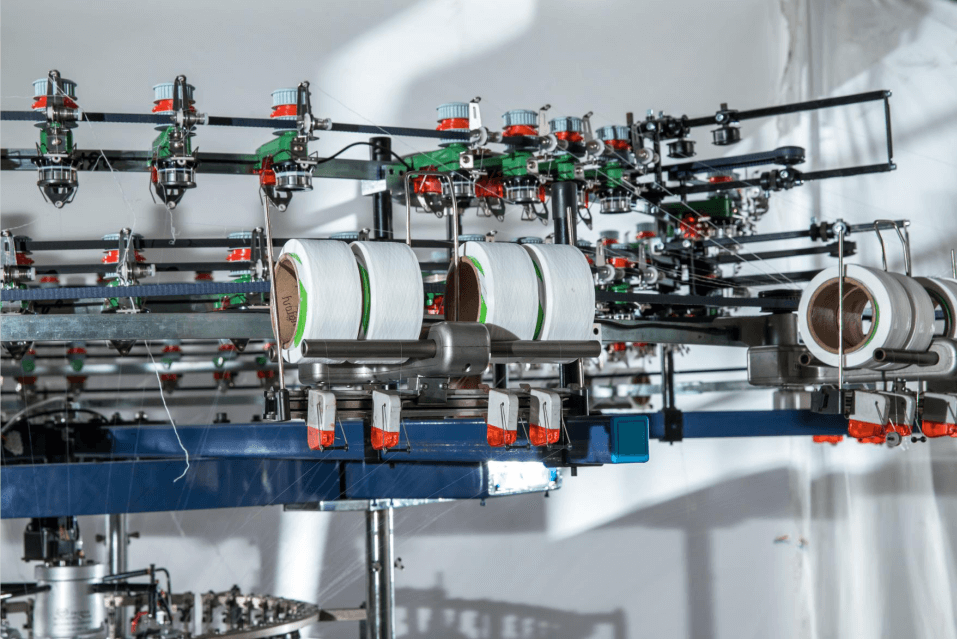

4Positive storage yarn feeders NeoHanmaChina1 unit

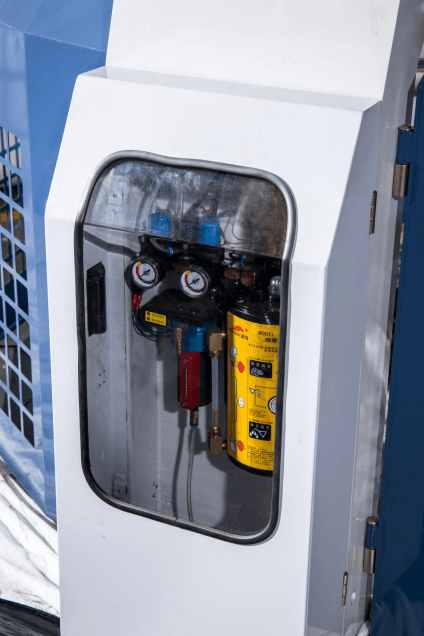

5Oiling lubricatorHanmaChina1 unit

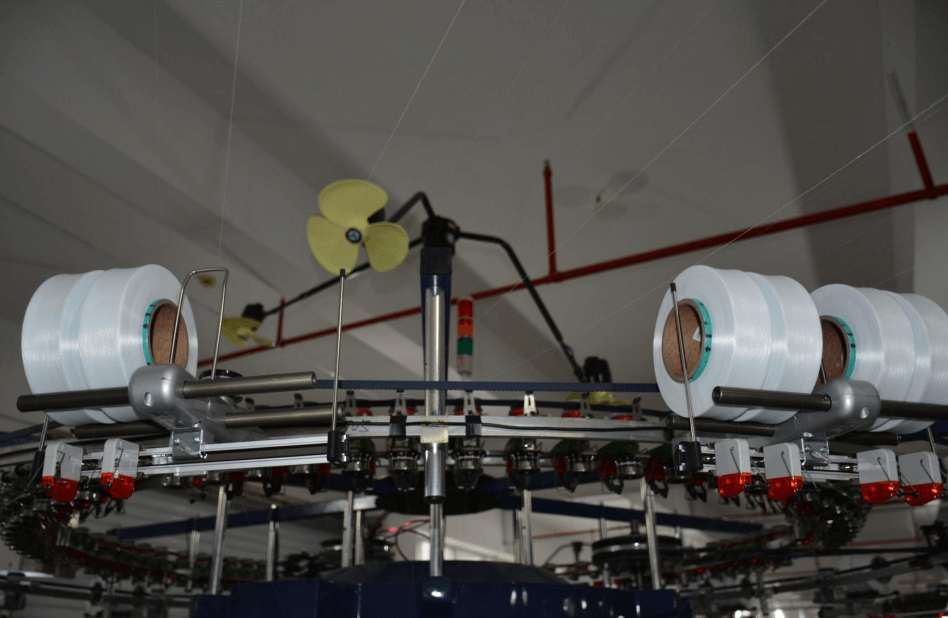

6Yarn creel HanmaChina1 set

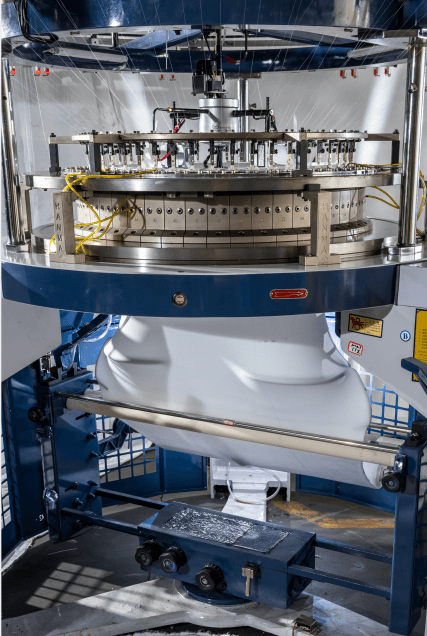

7One ways Take-down deviceYong taiTaiwan1 set

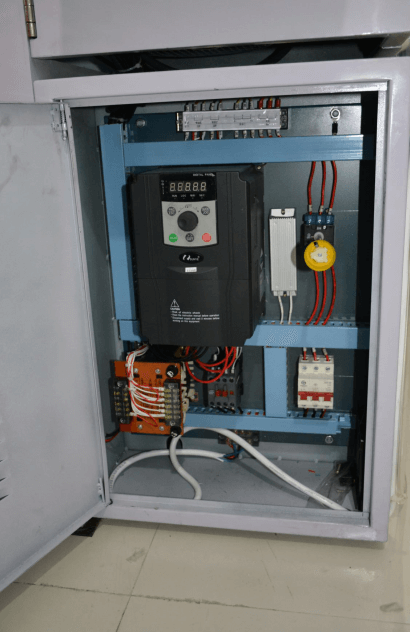

8Invertors for motor controllerSunyueTaiwan1 set
9fabric Spreader equipmentHanmaChina1 set

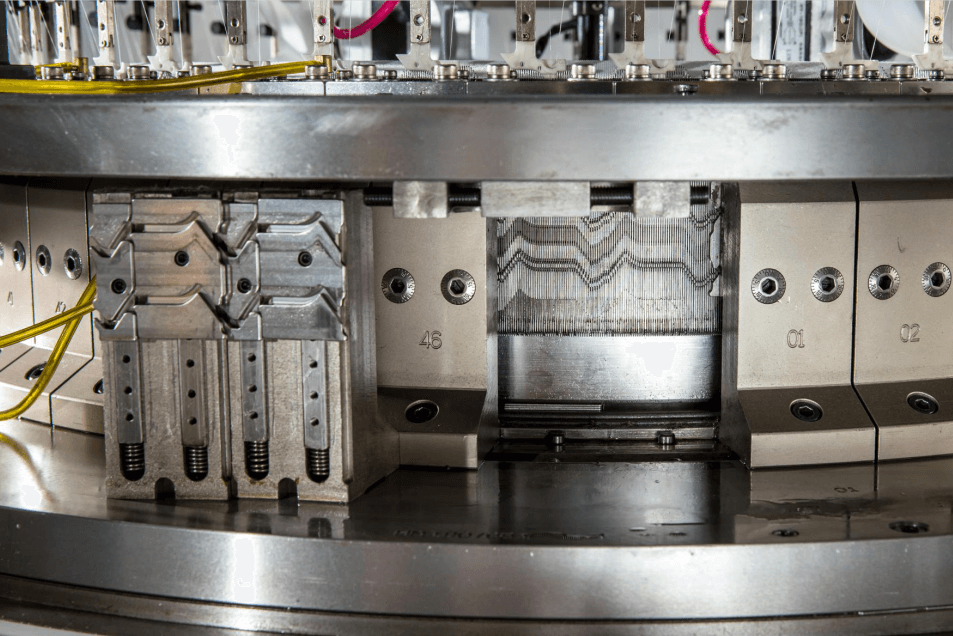

10camHanmaChina1 set

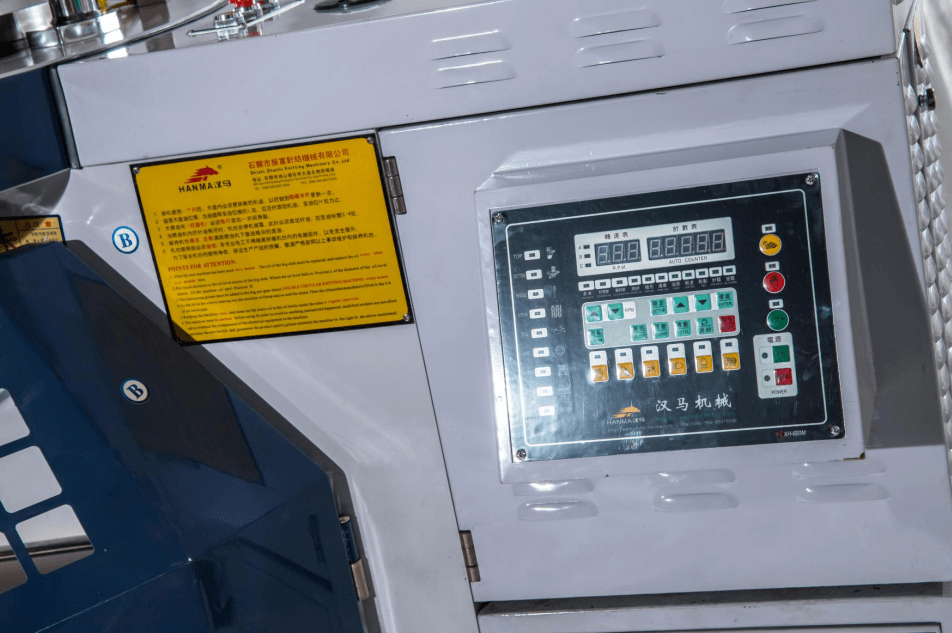

11Control panelHanmaChina1 set

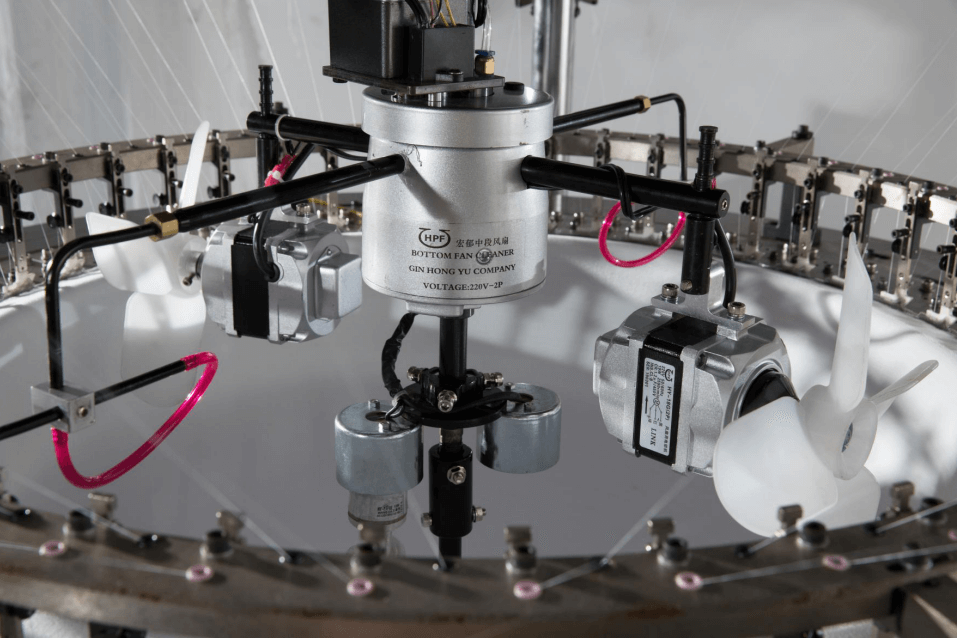

12Automatic dust fans with blower equipment.San songChina1 set
13Radar type round 360”Clear dust equipmentSan songChina1 set
14MotorHanmaTaiwan1 set
15Spare tools  1 set
16Operation manual for invertors & controller panel  1 set
17  Extra Spare parts : (a) 100pcs needles (b)100pcs sinkers
(c)Feeders 1pcs   (d)Air blower gun 1 set  (e)Fuse 4pcs
  (f) Yarn carrier 1pcs  (g)Needle oil 1 liter
Condition: NewProduct Type:fabricType:CircularProduction Capacity:250-750kg
Place of Origin: Fujian China
(Mainland)
Brand Name:HANMA
(circular knitting machine)
Model Number:HM-DF4
(circular knitting machine)
Power(W):5.5kw
(circular knitting machine)
Knitting Style: knittedKnitting Method: SingleComputerized: NoWeight:2.5TON
Dimension(L*W*H):2.35*2.28*2.28MAfter-sales Service Provided:Engineers
available to service machinery overseas
speed:0-30RPM
Certificate: CE
machine type: single terryturn way: anticlockwise
fabric function:sports garment

Single Terry fabric

Product Name109 colors french terry single terry cloth fabric sf002
Weight230g/m2
Style plain/plain dyeing
Material100% Cotton Fabric
Technicsknitted
Color109+ colors
Delivery Time(1)within 3 days
(2) 5-7 days if you would like to customize your color.
MOQ26kgs
PaymentT/T   Western Union    L/C    Paypal   D/A    D/P   Cash
Remarkwe have 109 colors per species,we also accept customization
packing way26kgs/roll   1roll/packing,use eco-friendly material.

Featuring different types of sinkers, the terry single knitting machine is capable of knitting high-quality terry fabric of different loop height. With the Lycra attachment, it can also knit stretchy towel. Moreover, velvet with protruding loops can be produced as this machine is characterized by reversed cams and normal cams.

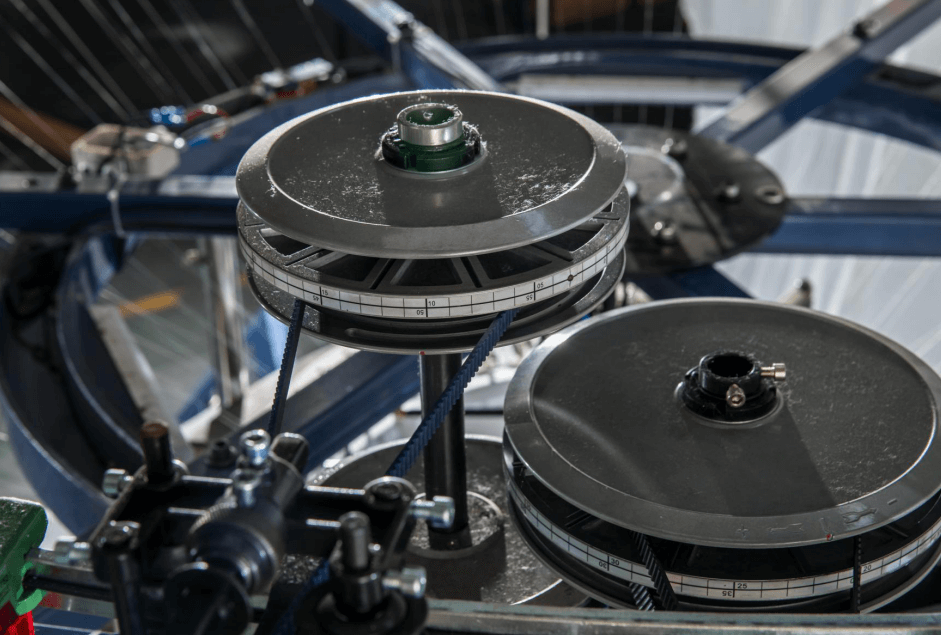

Our Single Terry Circular Knitting Machine can be adjusted through the crimp and wheel tension based on the diverse fabric types and thickness required. We guarantee uniform cloth density and prevention of marks.

Related RFQ

We are located at Shishi City Fujian Province China, we are export port is Xiamen port

Yes, we have excellent after-sales service, can give a quick response, supporting in Chinese and English, video support is available. We have training center in our Factory.

We offer warranty for about one year after customer received our products

knitting machine is a device used to create knitted fabrics in a semi or fully automated fashion. There are numerous types of knitting machines, ranging from simple spool or board templates with no moving parts to highly complex mechanisms controlled by electronics.
